How to Connect the Device to xTool Creative Space Application

Article author
xTool Customer Service
  • Updated

This article applies to F1, D1, and D1 Pro with all laser modules

xTool Creative Space Application is downloadable on Apple's App Store, Google Play, and the xTool website. You can search XCS on Apple's App Store or Google Play to download it. Currently, the application applies to D1, D1 Pro, and F1 devices. To avoid any exceptions, please make sure that the firmware version is up-to-date.


#1 Turn on XCS Software

#2 Add Device


If you use xTool Creative Space for the first time:
  1. Tap "Connect device" on the homepage of the application (shown below).
  1. Tap the "+" button in the top right corner.
  1. Choose your device.
  1. Hold down the start button on the device for 5 seconds until the indicator blinks white. The device
enters the network configuration state.

#3 Network Configuration

  1. Connect the device to Wi-Fi by inputting your Wi-Fi name and password. Make sure that you enter the correct Wi-Fi password.
Note: The name and password of Wi-Fi consist only of numbers and letters. No special characters are used.
The device supports 2.4GHz Wi-Fi networks only.

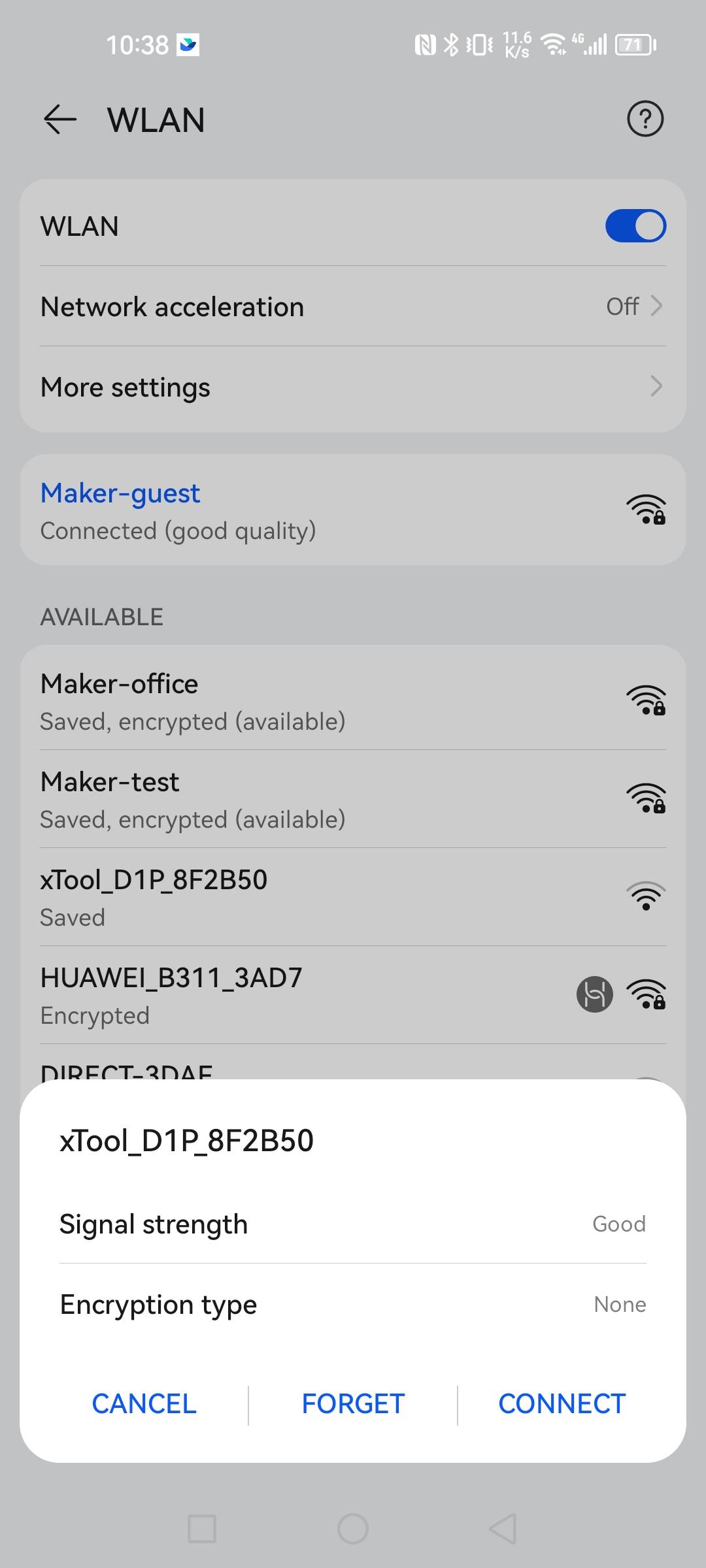

  1. Go to the WLAN settings of the device to convey the router's information to the device.
Usually, the machine's Wi-Fi name is xTool_D1P_xxxxxx.

#4 Finish Configuration

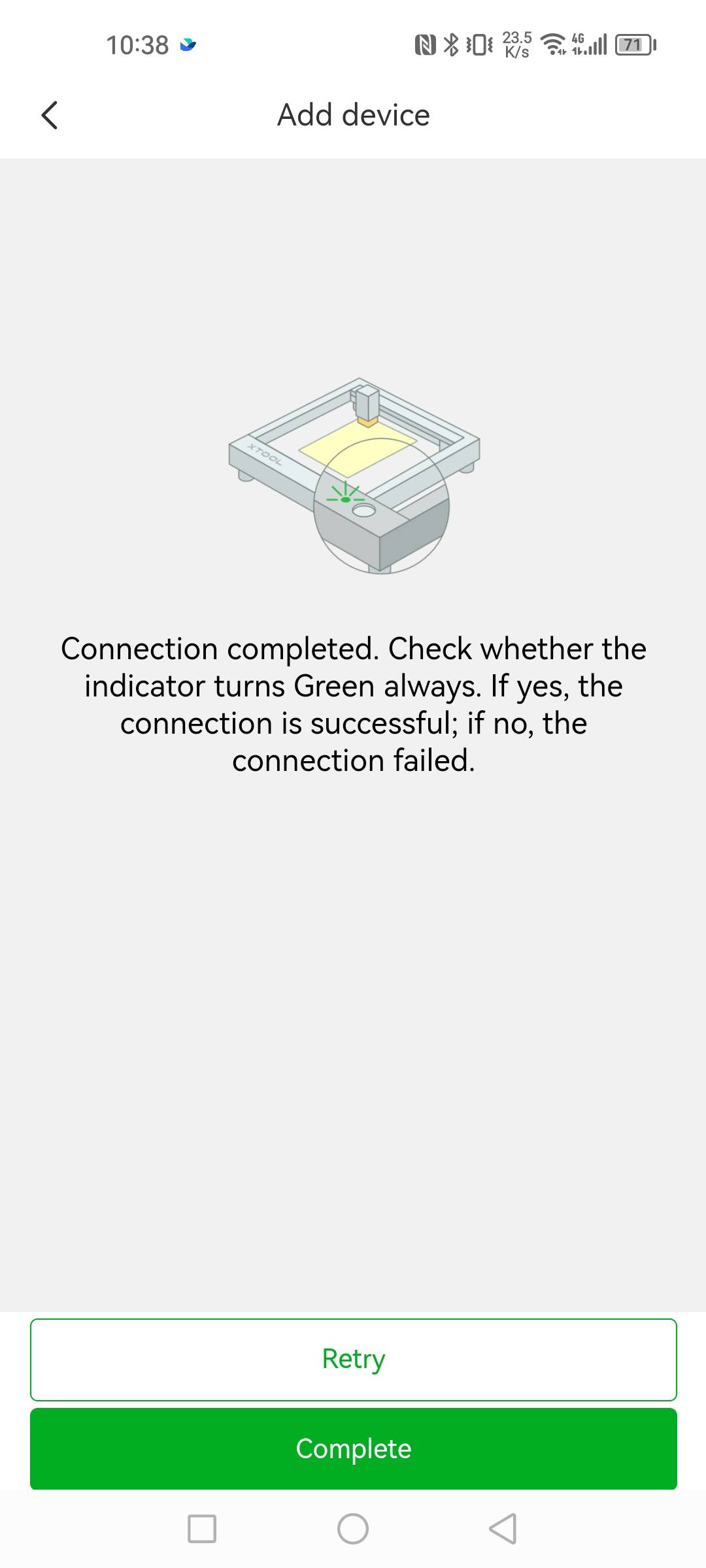

  1. Wait for a while until the Wi-Fi information of the router is conveyed to the machine.
  1. Make sure the processing indicator turns green after the connection is completed.
If the indicator on the motherboard doesn't turn green, please check if the Wi-Fi connection cable or antenna is loose. Try connecting to Wi-Fi again. Make sure you input the correct name and password for Wi-Fi. Try using the mobile hotspot if needed.

Tap your device after the connection succeeds.
Power off the machine after the connection is established. If your mobile phone keeps connecting to the configured Wi-Fi, the XCS application will automatically connect to the machine after restarting it.

Note: After the connection is completed, You will operate the XCS application to run the device. Make sure your TF Card is ready to use. If there is any exception, please use the XCS software on the computer through a USB connection cable. If there is any exception during the process, please contact xTool customer support for further advice.
