Use the xTool 1064nm Infrared Laser Module with LightBurn

Contents:

• Basic settings

• Additional settings

  • 1. Initial settings

  • 2. Switch on/off "Constant Power Mode"

  • 3. Set a proper "Line interval (mm)" and/ or "Lines per Inch" value

--------------------------------------------------------------------------------

Basic settings:

D1	https://support.xtool.com/hc/en-us/articles/4414120232983-User-Manual-for-xTool-D1-LightBurn-Software
D1 Pro	https://support.xtool.com/hc/en-us/articles/7317000221591-Use-LightBurn-to-Operate-xTool-D1-Pro

Additional settings:

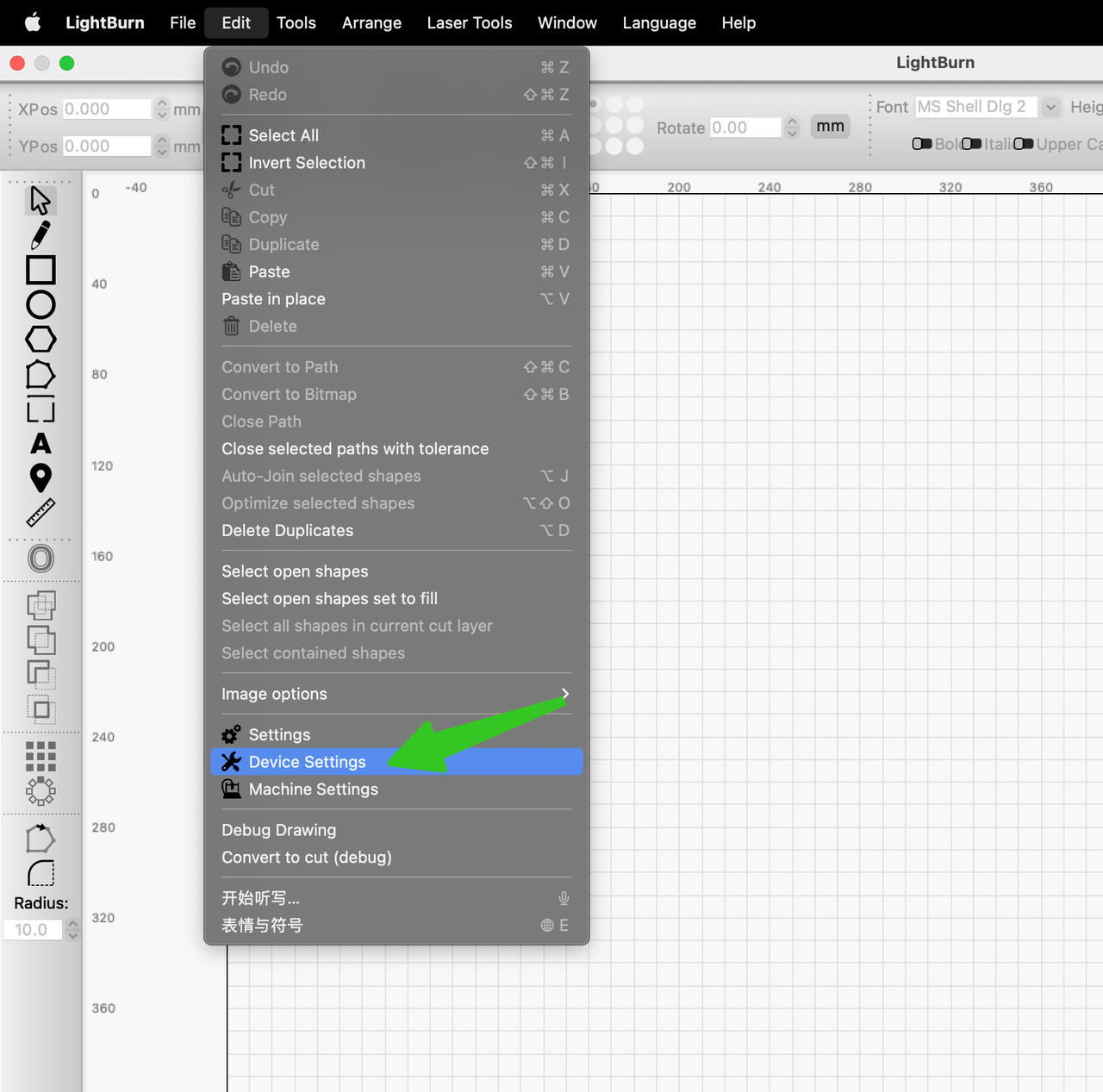

1. Initial settings:

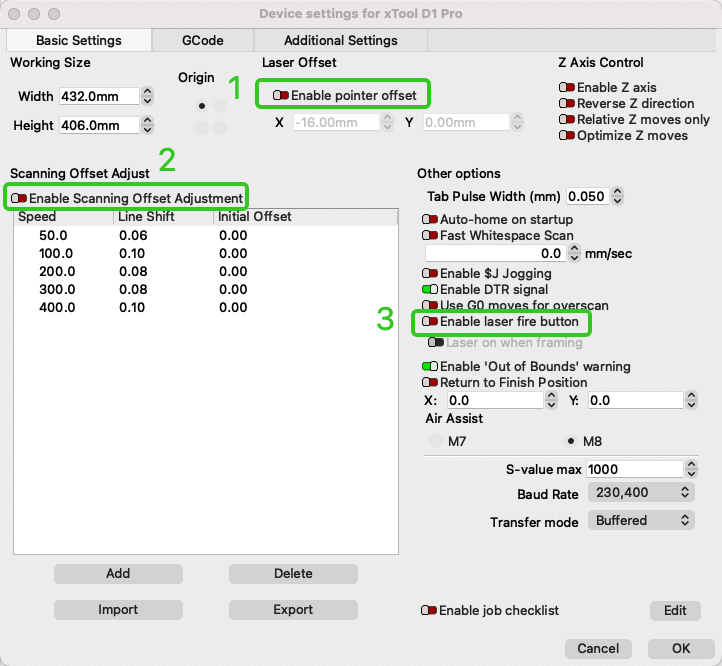

1.1 Switch off the "Enable pointer offset";

1.2 Switch off the "Enable Scanning Offset Adjustment";

1.3 Switch off the "Enable laser fire button";

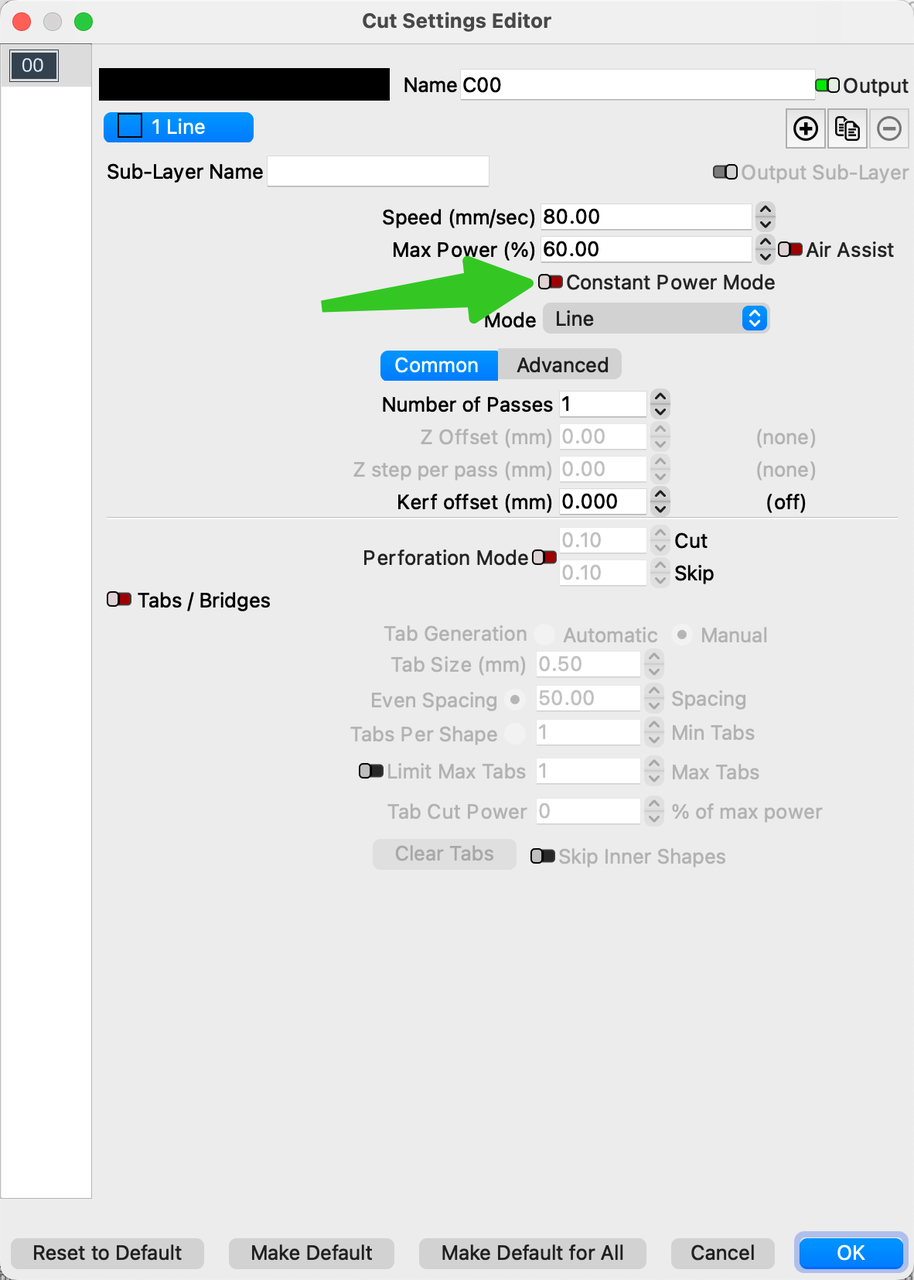

2. Switch on/off "Constant Power Mode"

Switch on "Constant Power Mode" when processing a vector file, and switch it off when it is a bitmap file.

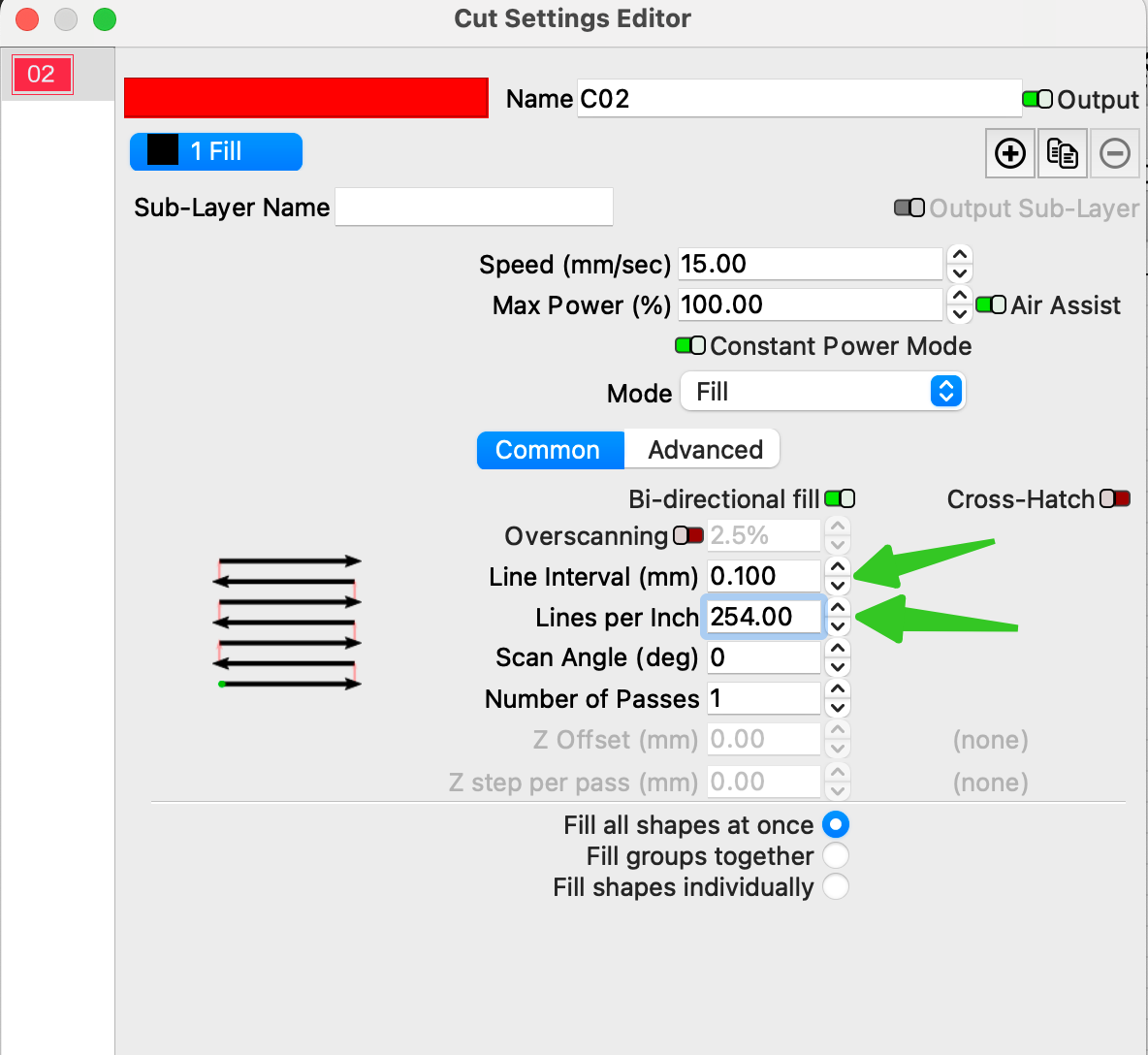

3. Set a proper "Line interval (mm)" and/ or "Lines per Inch" value

Considering the relatively small laser spot of the xTool 1064nm Infrared Laser Module and certain metal features, with the default "Line interval (mm)" and "Lines per Inch" value, there could be inadequate fill with the engraving, with lines too obvious. So it is suggested to properly set a higher "Line interval (mm)" and/ or "Lines per Inch" value.
