Laserbox Rotary User Guide
Contents
Understand the annular indicator
6. Use the Laserbox software to operate Laserbox Rotary
7. Cutting & engraving parameter reference
8. Meet, install, and use Rotary Attachment
1. Unbox and check
Laserbox Rotary comes with the following parts. If there is any part missed, contact us at support@xtool.com.
① Laserbox Rotary
② Power cable
③ USB cable
④ Smoke exhaust pipe components
⑤ Material pack
⑥ User manual
⑦ Purifier 1 components: To use these components, you need to purchase a pack that include them. For details about how to install them, see Purifier 1.
⑧ Purifier 2 components: To use these components, you need to purchase a pack that include them. For details about how to install them, see Purifier 2.
⑨ Rotary Attachment components: To use these components, you need to purchase a pack that include them. For details about how to install them, see How to Install the Rotary Attachment for Laserbox Rotary.
2. Meet your Laserbox Rotary
|
1: Button
2: Annular indicator
3: Power switch
4: Power port
5: USB port
6: Ethernet port
7: Smoke outlet
8: Aviation port
|
|
9: Camera
10: Laser tube
11: Laser module
12: Honeycomb panel
13: Tray
14: Rotary Attachment port
|
3. Use Laserbox Rotary

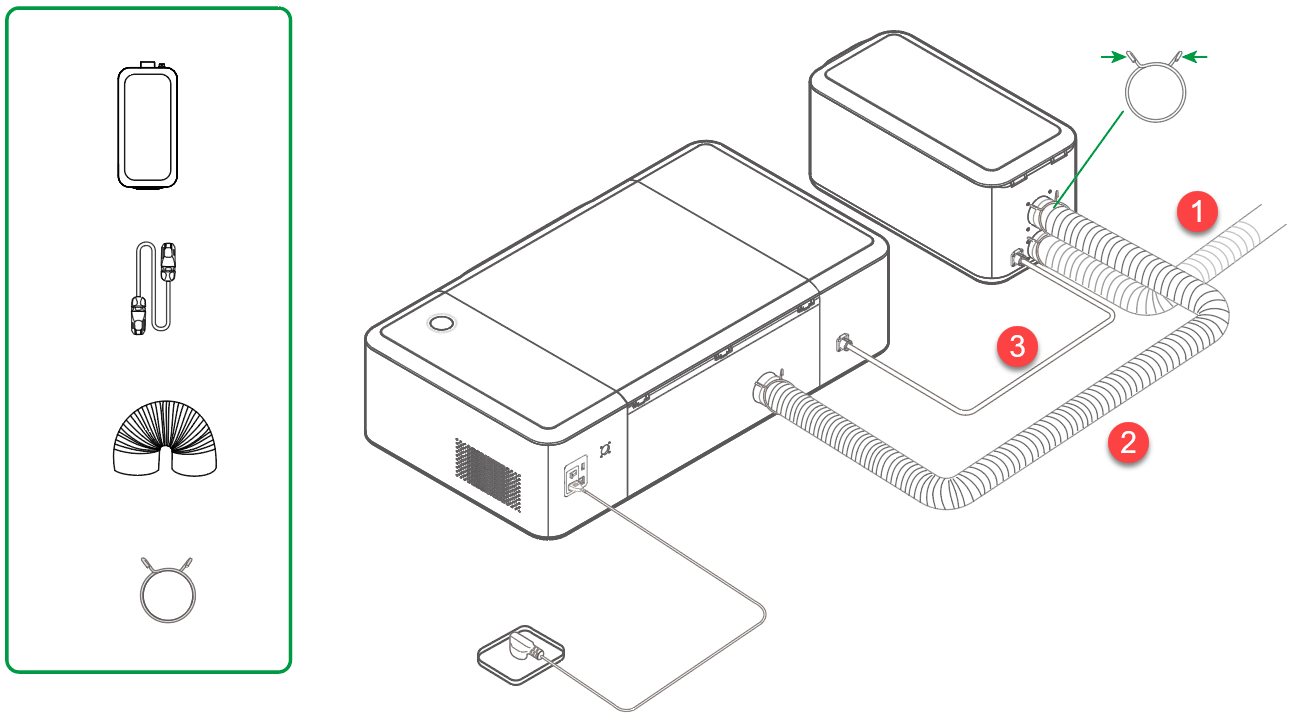

Set up your machine as follows and turn it on.
Note: If the pack you've purchased includes a purifier, install it before you use Laserbox Rotary. For details about how to install the purifier, see "5. Meet and use your purifier."
Understand the annular indicator
State
|
Description
|
Blinking white
|
Being started
|
Solid white
|
Waiting to be connected
|
Blinking blue
|
Ready. The design has been received.
|
Solid blue
|
Standby. The machine has been connected to a PC.
|
Six LEDs lit up one by one
|
Operating. LEDs light up one by one, indicating the progress of the engraving or cutting.
|
Solid green
|
Process completed
|
Breathing green
|
Sleep state, entered if no operation is performed in 10 minutes
|
Solid red
|
Exceptions occur
|
Solid purple
|
Upgrading firmware
|
4. Use the default functions
Laserbox Rotary is Laserbox Rotary provides the following two default functions that you can use without software or a computer:
Process what you draw
Equipped with a high-definition and wide-angle camera, Laserbox Rotary can recognize our official materials by labels and recognize lines and patterns drawn on the materials or copy paper A4.
By default, it cuts red and black lines.
Attention
-
Use our official materials. Reflective materials or materials too dark will make it much harder for Laserbox Rotary to recognize lines or patterns.
-

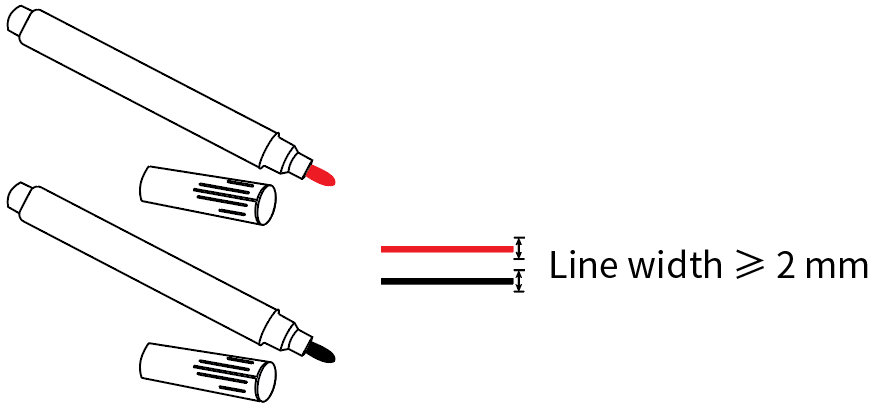

Use markers whose tips are large enough. Make sure that the line width is no smaller than 2mm.
-

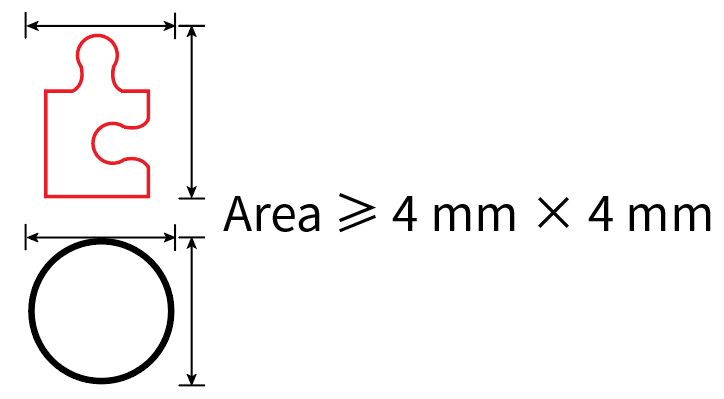

Make sure that the patterns you've drawn are large enough for Laserbox Rotary to recognize.
-
Do not draw your lines or patterns close to the edges of a material to too close to the material label.
Use this function
What you need is:

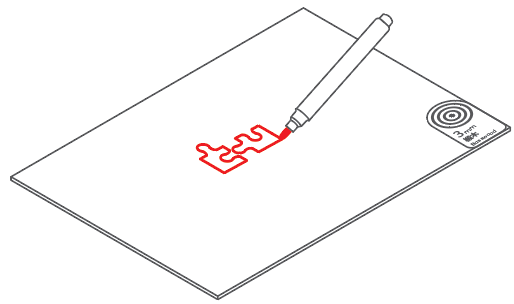

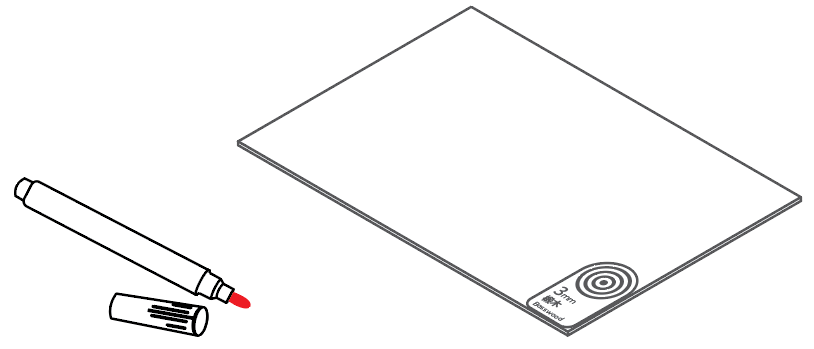

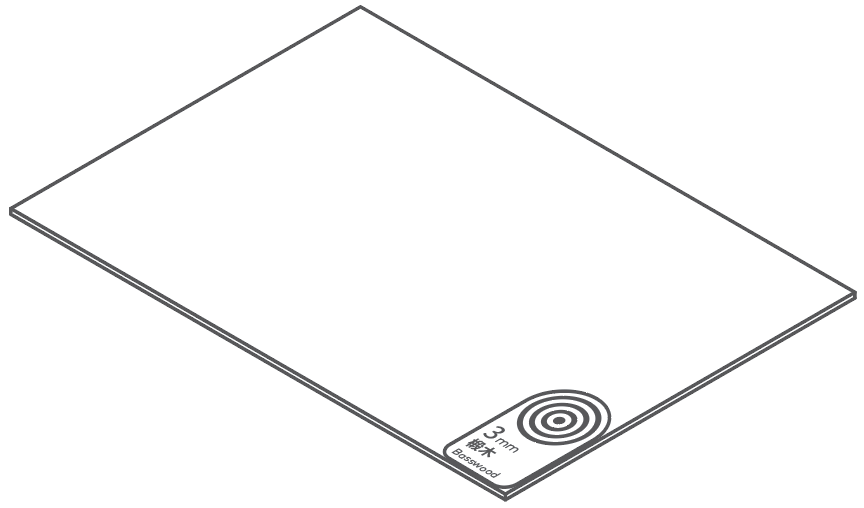

1. Draw on one of our official material. | |

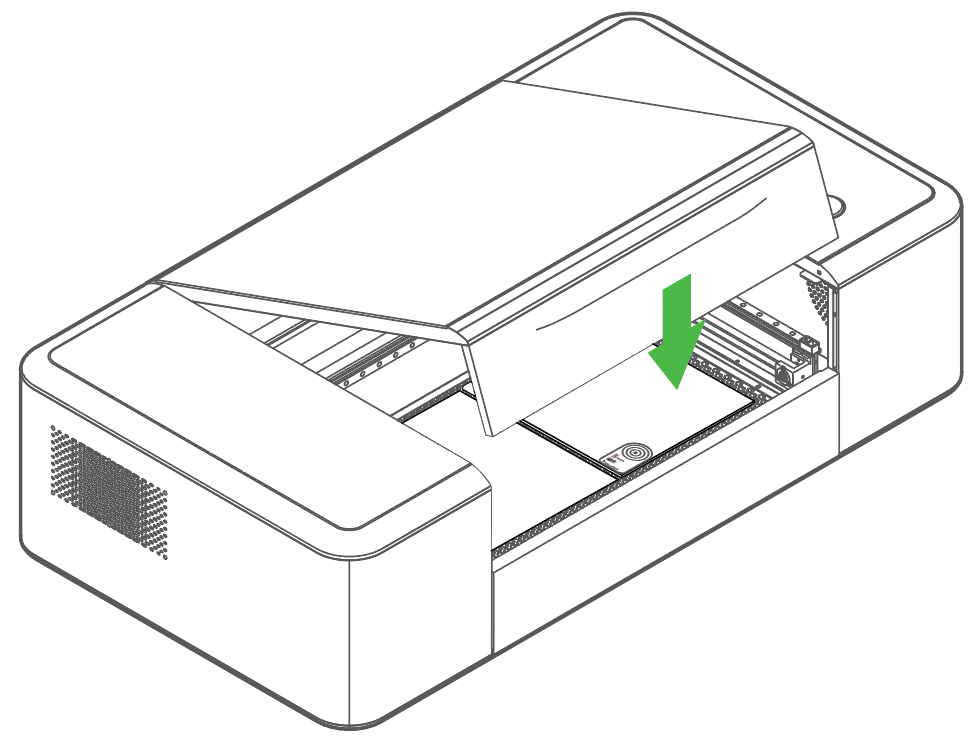

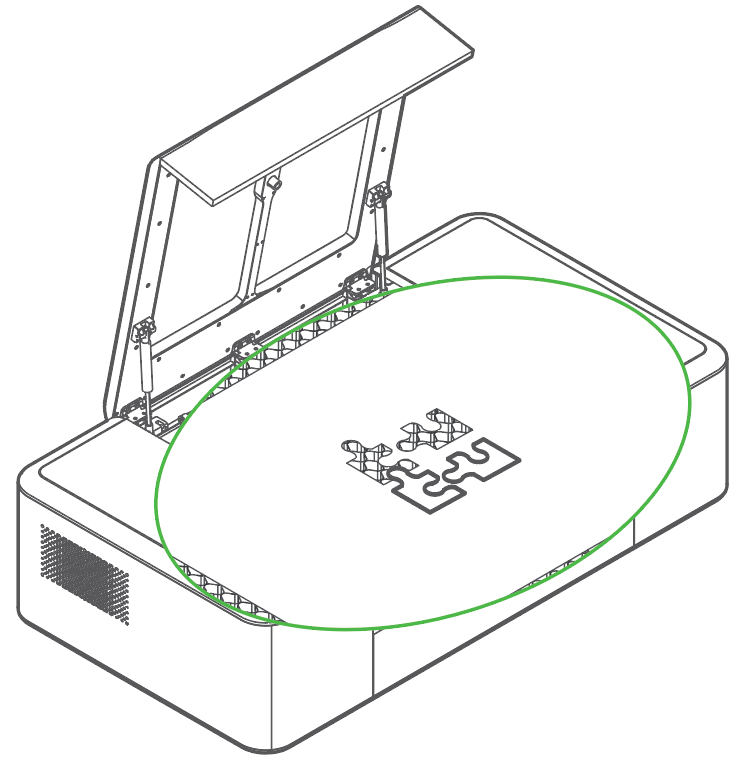

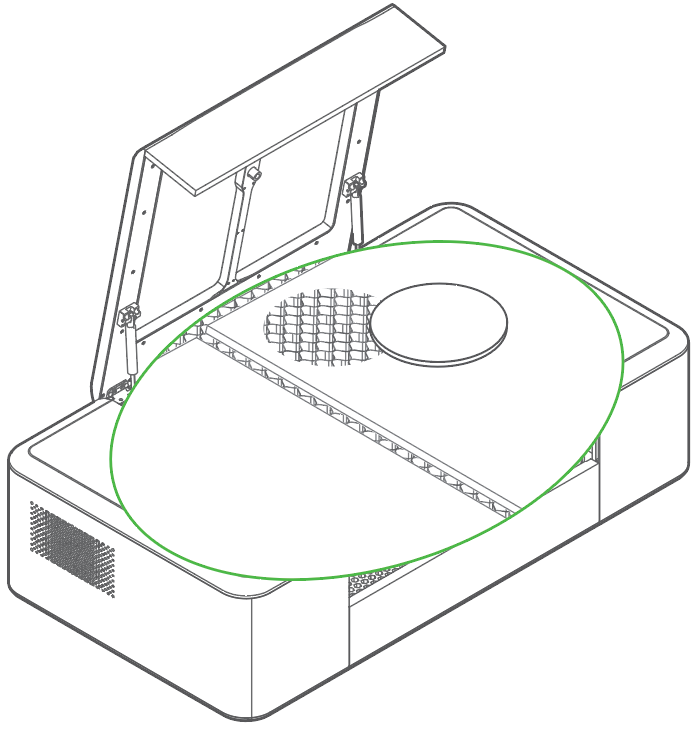

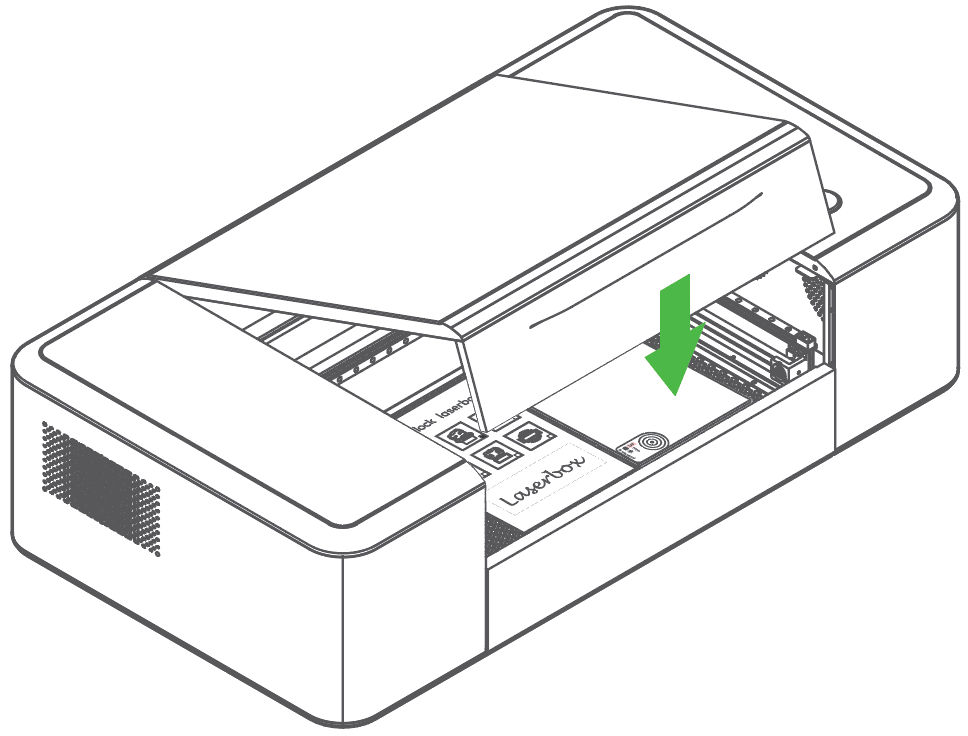

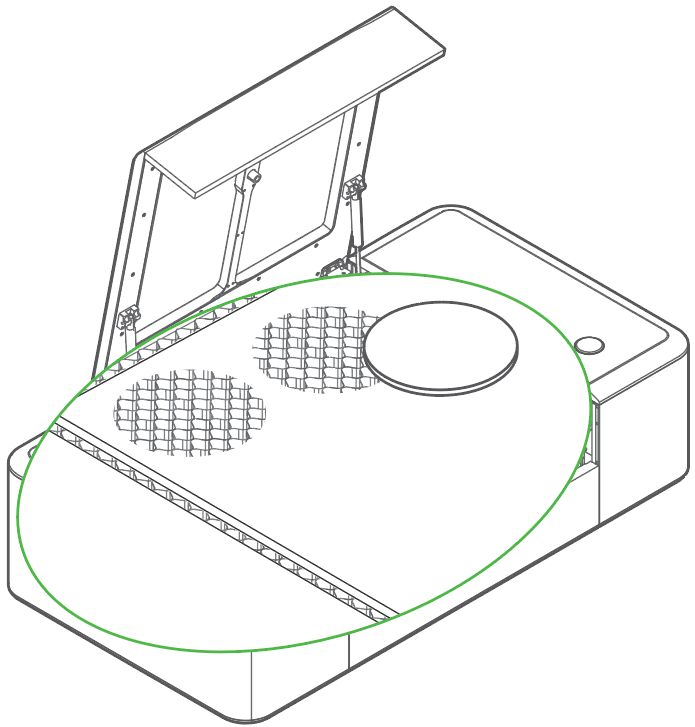

2. Place the material in the center of the working area of Laserbox Rotary. | |

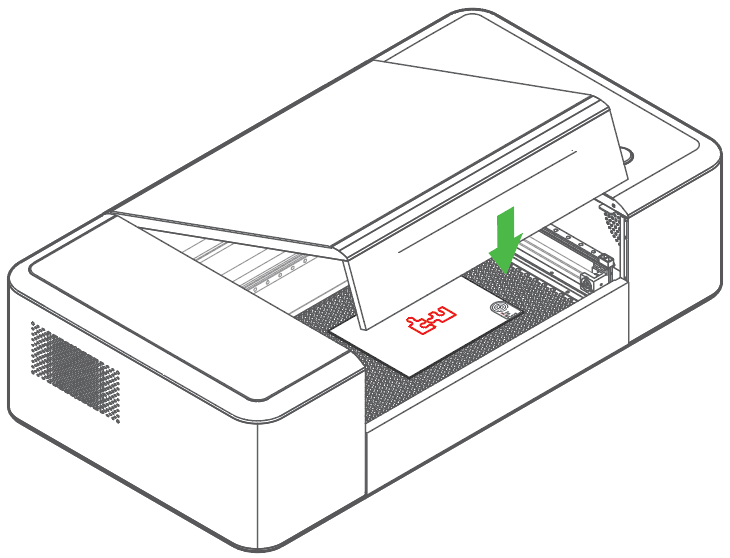

3. Close the lid. | |

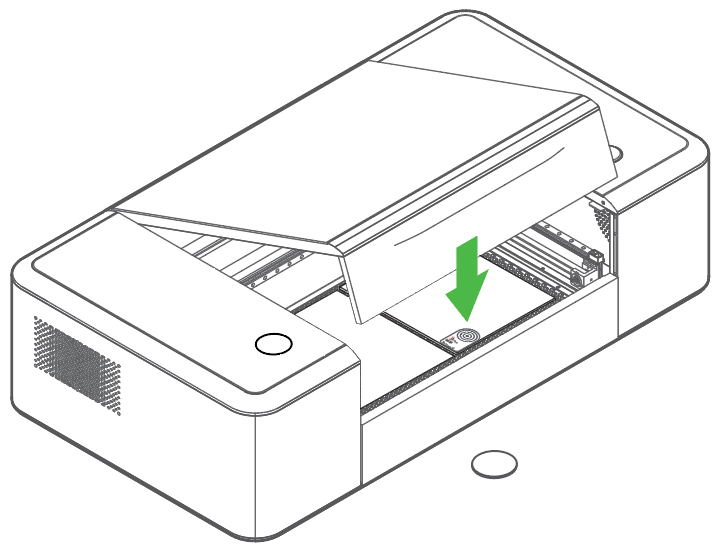

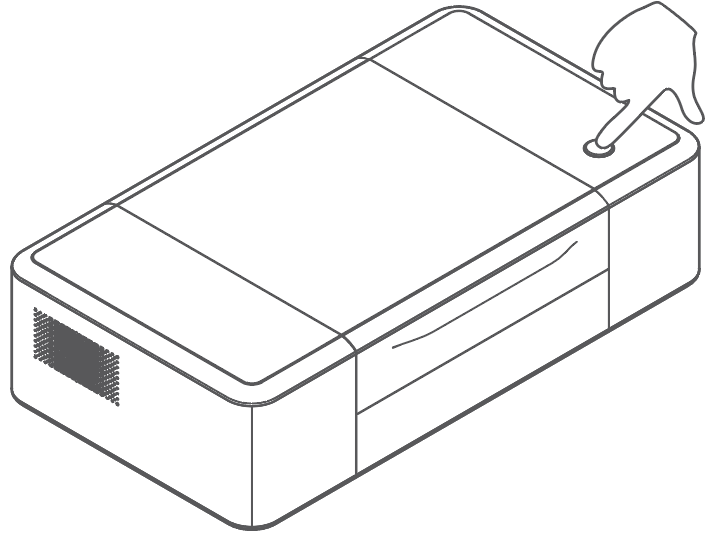

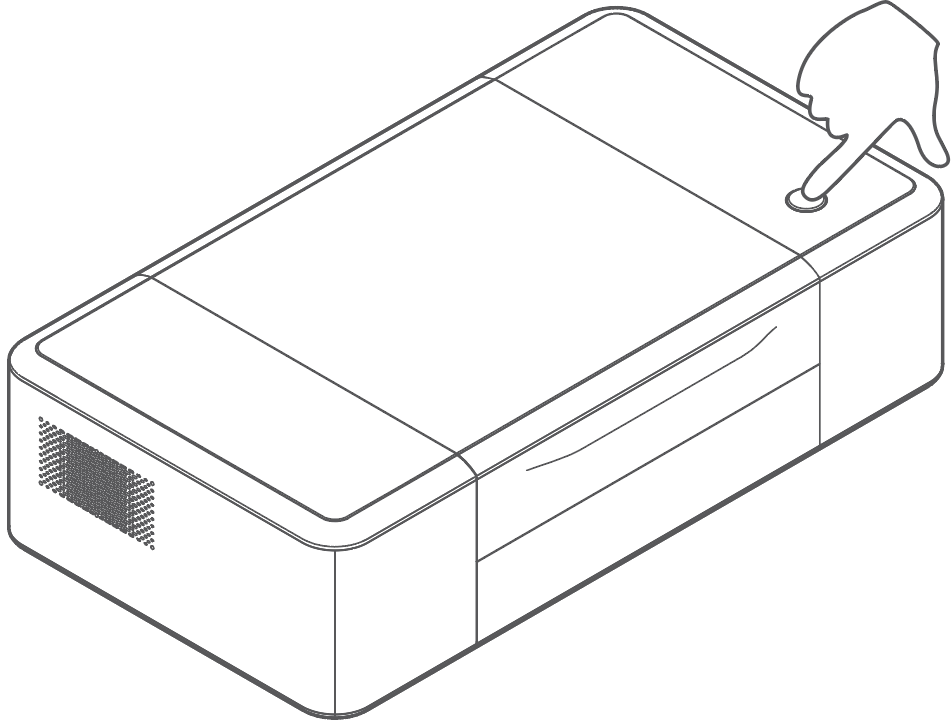

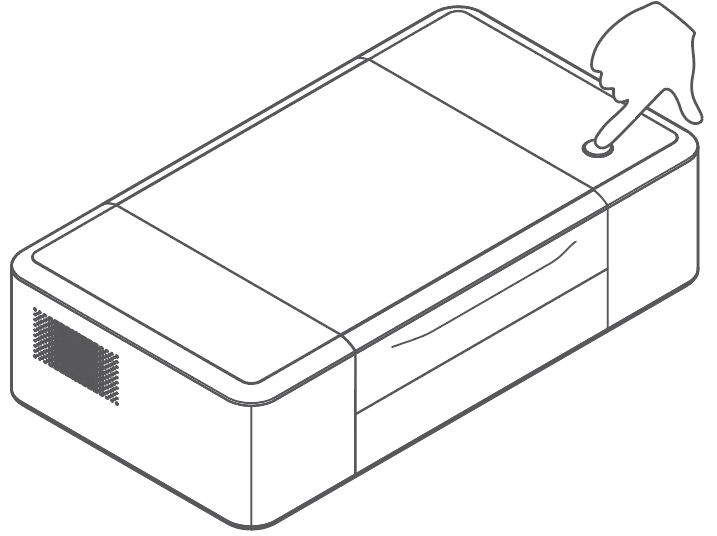

4. Press the button on Laserbox Rotary and wait for the processing to complete. | |

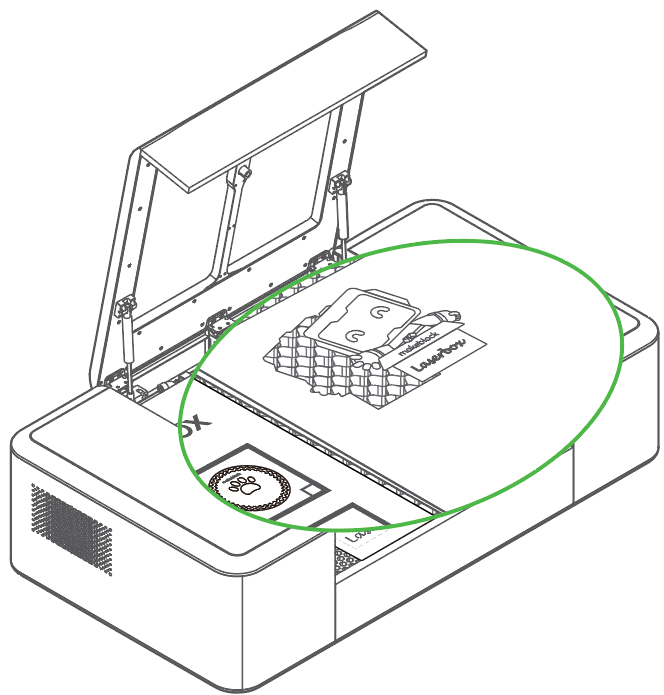

5. Open the lid and take out your works. |
Alternatively, you can draw one pattern and use it for multiple times.
What you need is:

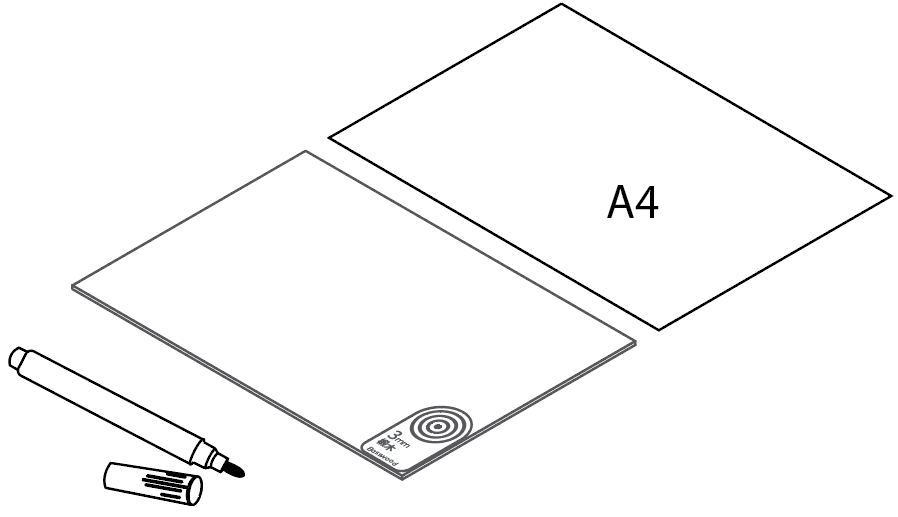

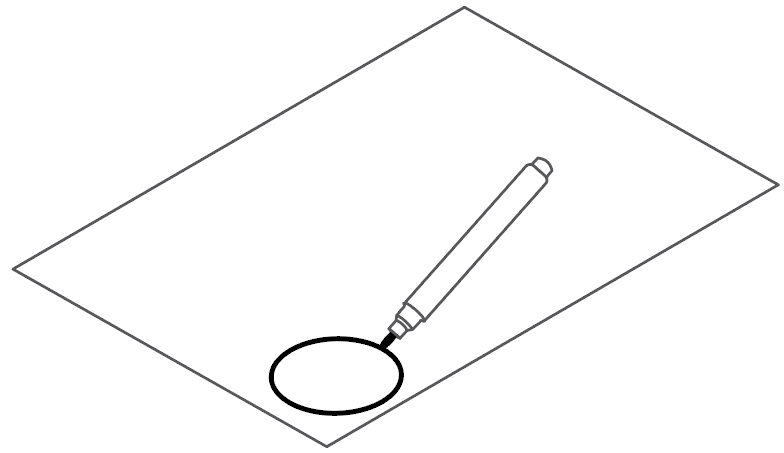

1. Draw on a piece of copy paper A4. | |

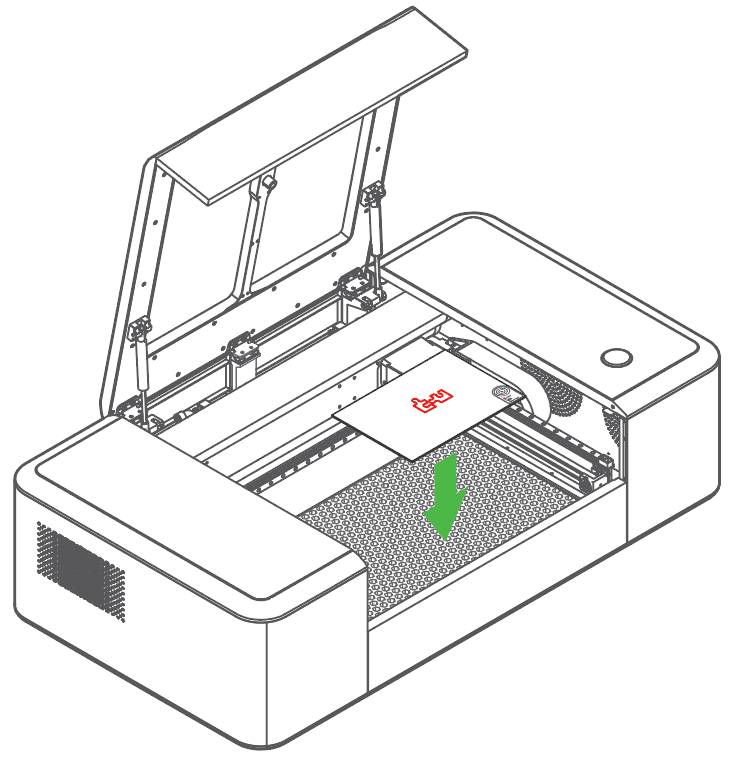

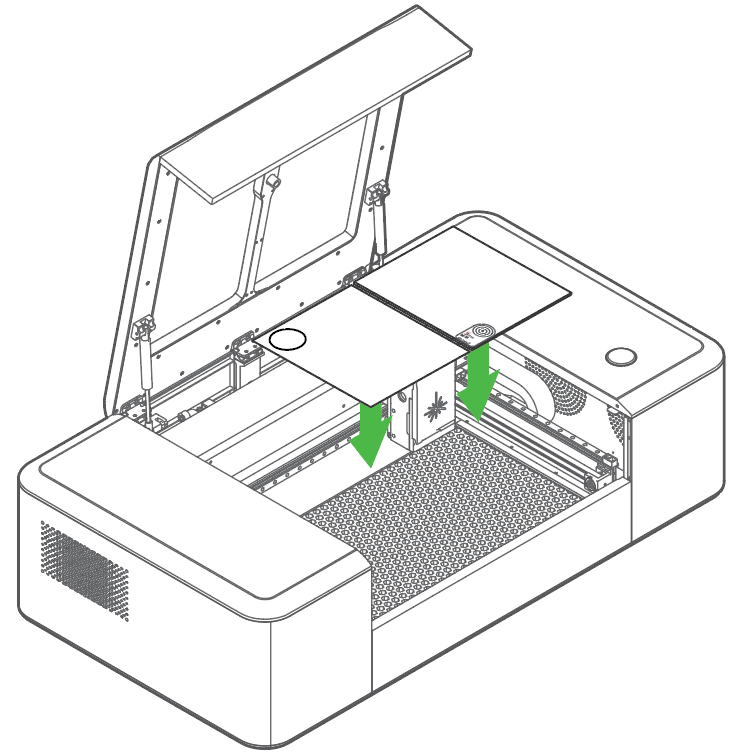

2. Place the copy paper and one of our official material together in the working area of Laserbox Rotary, with the copy paper on the left side. | |
3. Close the lid. | |
4. Press the button on Laserbox Rotary and wait for the processing to complete. | |
5. Open the lid and take out your works. | |
6. Close the lid again. | |
7. Press the button on Laserbox Rotary and wait for the processing to complete. | |
8. Open the lid and take out your works. |
Process what you pick
Laserbox Rotary can automatically recognize patterns you select from the example project file.
Download the file and print it on a piece of copy paper A4:
File for "Process what you pick"
What you need is

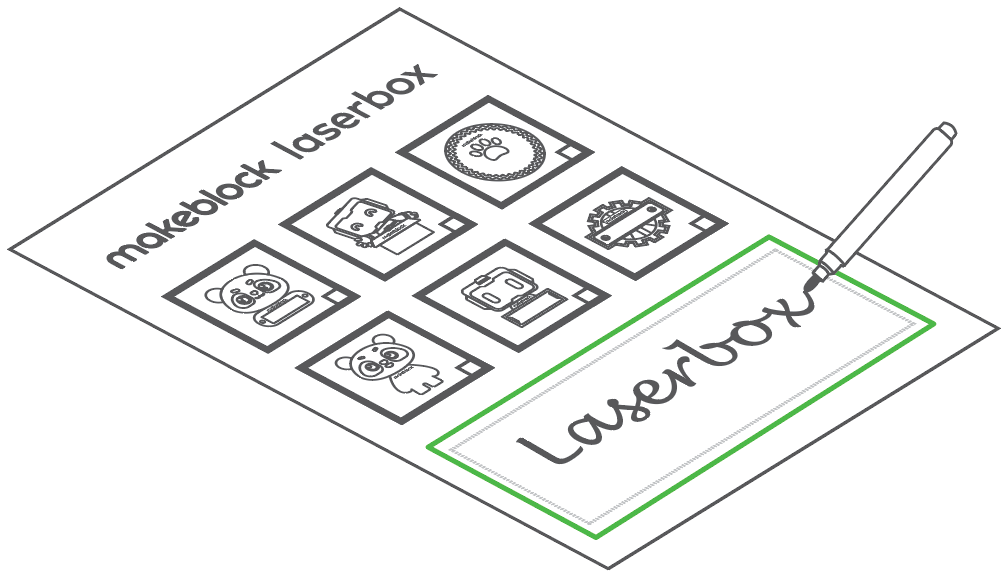

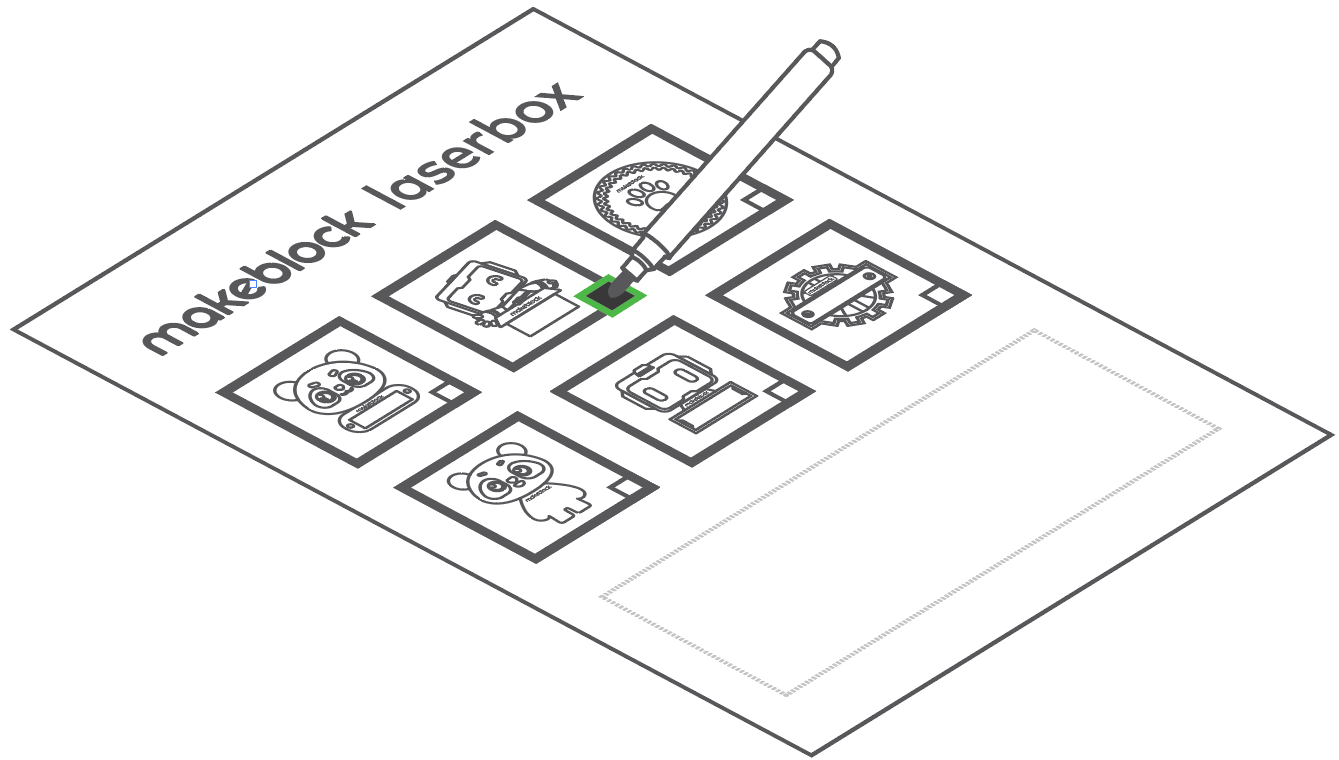

1. Select a pattern on the printed sheet. | |
2. Write or draw something in the dashed box. | |

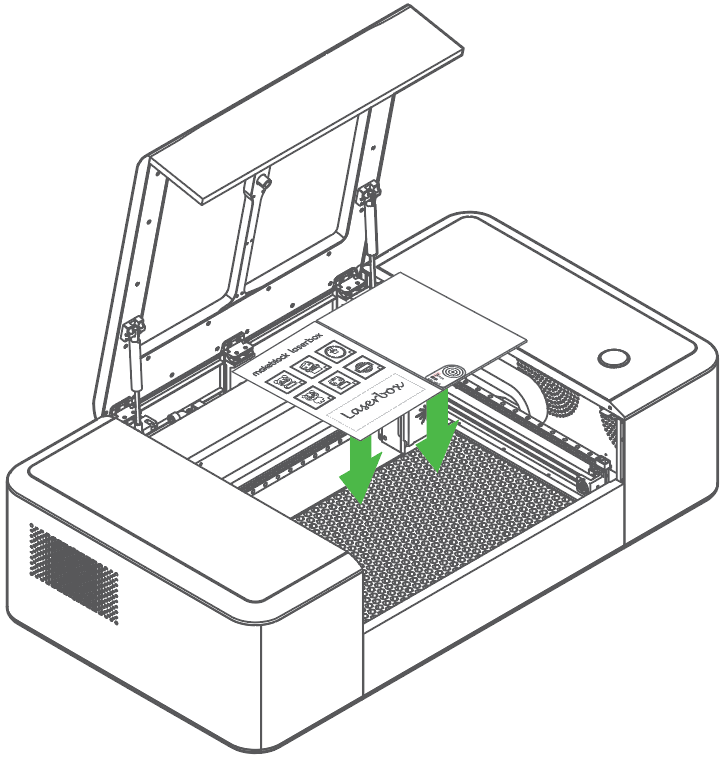

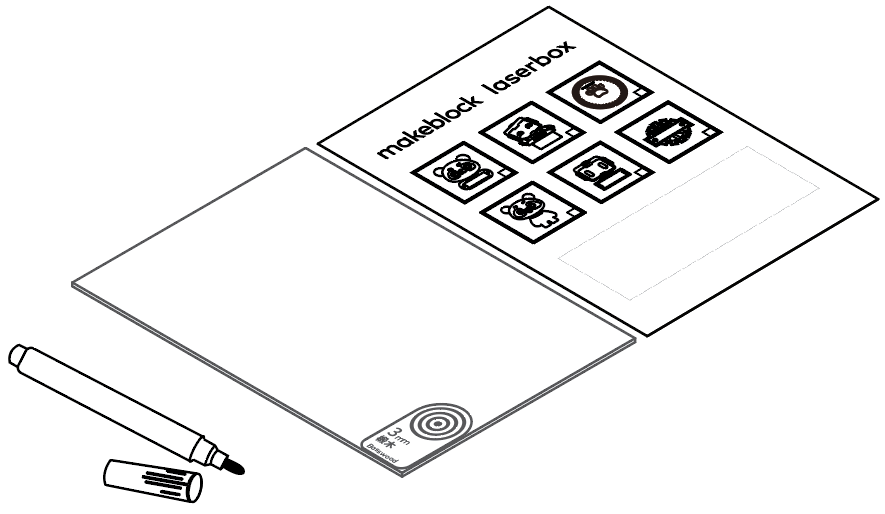

3. Place the printed sheet and one of our official material together in the working area of Laserbox Rotary, with the printed sheet on the left side. | |
4. Close the lid. | |
5. Press the button on Laserbox Rotary and wait for the processing to complete. | |
6. Open the lid and take out your works. |

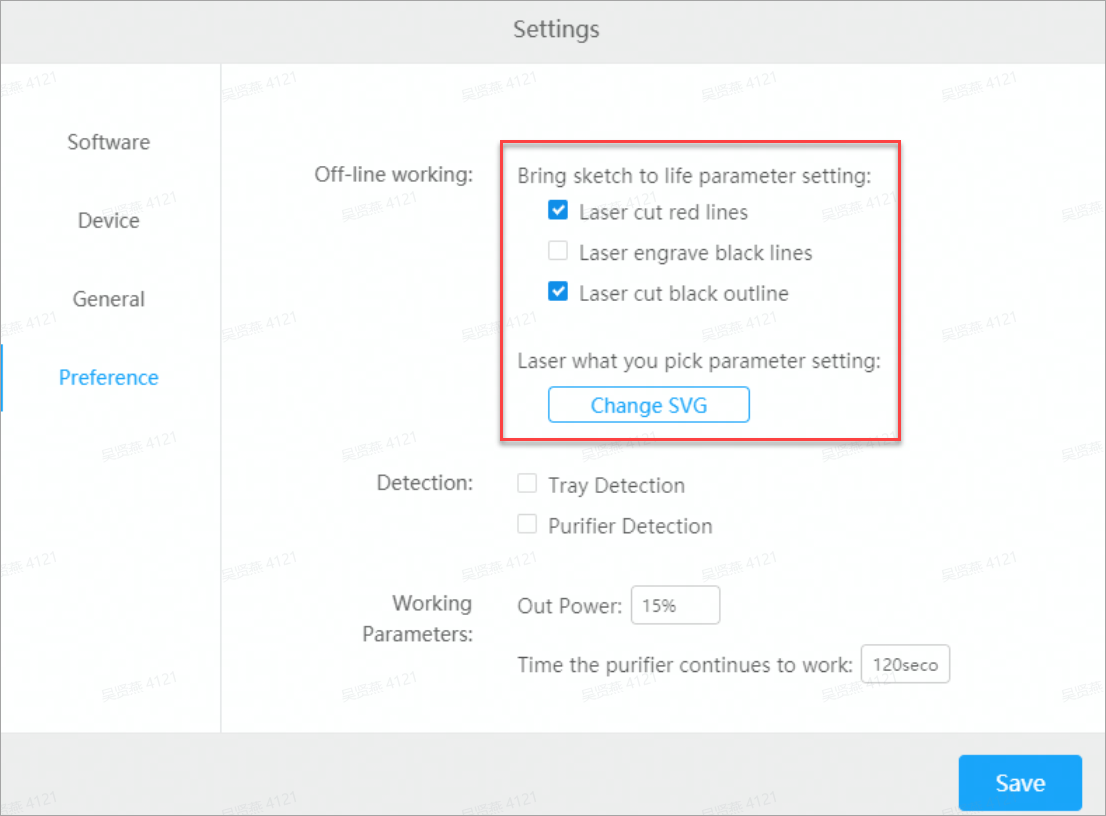

Modify the default functions
You can modify the default functions, such as enabling Laserbox Rotary to engrave some patterns, on the Laserbox software.
For more information about how to use the Laserbox software, see User Manual for Laserbox Software.
5. Meet and use your purifier

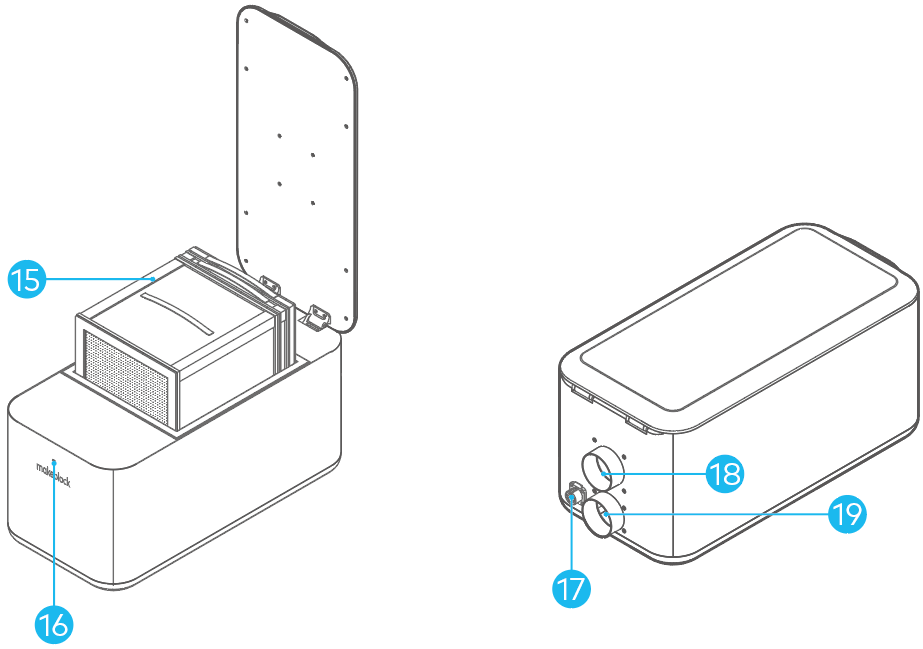

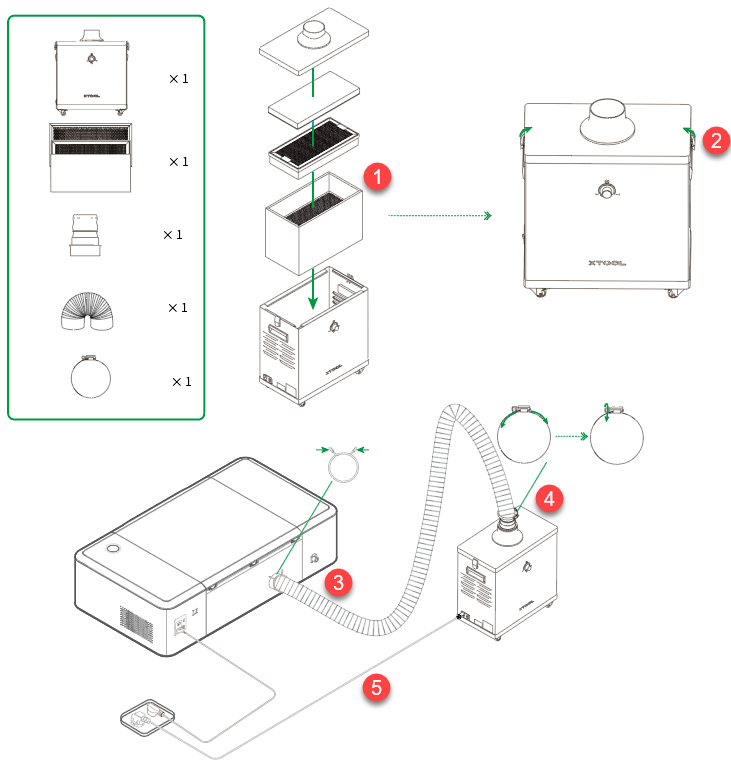

Purifier 1
15: Filter
16: Indicator
17: Aviation port
18: Smoke inlet
19: Smoke outlet
|

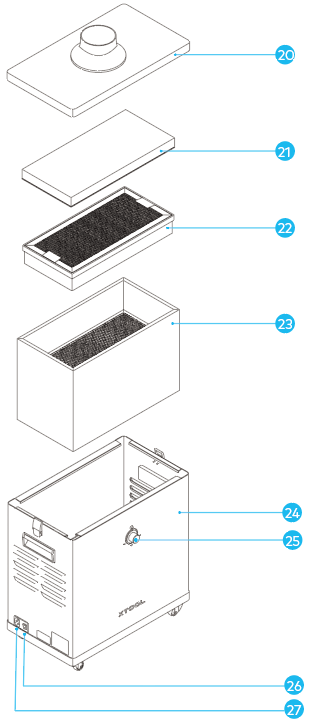

Purifier 2
20: Lid |
6. Use the Laserbox software to operate Laserbox Rotary

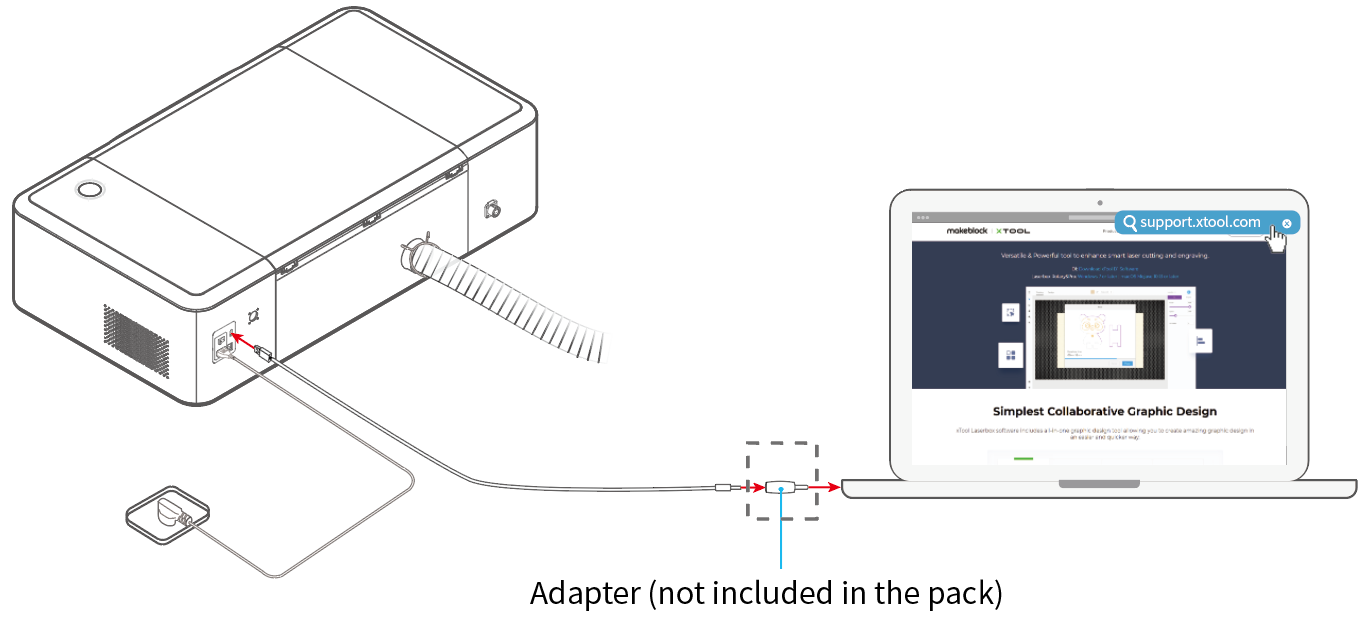

You can operate Laserbox Rotary by using the Laserbox software. To download and obtain the instructions of the Laserbox software, see User Manual for Laserbox Software.
Tips: If your computer doesn't support the USB cable delivered with Laserbox Rotary, you need to connect it to your computer by using an adapter.
7. Cutting & engraving parameter reference
Material | Cutting | Engraving | ||
Speed | Power | Speed | Power | |
0mm Paper | 80mm/s | 25% | 80mm/s | 25% |
7.1mm iPhone6s | - | - | 72mm/s | 50% |
3mm Basswood | 16mm/s | 95% | 64mm/s | 40% |
5mm Basswood | 6mm/s | 100% | 64mm/s | 40% |
3mm Black Walnut | 10mm/s | 95% | 64mm/s | 50% |
5mm Black Walnut | 10mm/s | 100% | 64mm/s | 50% |
3mm Pine | 10mm/s | 95% | 64mm/s | 50% |
5mm Pine | 10mm/s | 95% | 64mm/s | 50% |
3mm Cherry | 11mm/s | 95% | 64mm/s | 50% |
5mm Cherry | 9mm/s | 100% | 64mm/s | 50% |
3mm Mahogany | 12mm/s | 95% | 64mm/s | 50% |
5mm Mahogany | 5mm/s | 100% | 64mm/s | 50% |
3mm Willow | 10mm/s | 95% | 64mm/s | 50% |
5mm Willow | 4mm/s | 100% | 64mm/s | 50% |
3mm Acrylic | 6mm/s | 100% | 64mm/s | 50% |
5mm Acrylic | 3mm/s | 100% | 64mm/s | 50% |
2mm Cardboard | 32mm/s | 90% | 80mm/s | 35% |
3.5mm Cardboard | 22mm/s | 100% | 80mm/s | 35% |
2.5mm Acrylic | 6mm/s | 100% | 64mm/s | 50% |
3mm Dense board | 12mm/s | 90% | 64mm/s | 30% |
2.5mm Basswood | 16mm/s | 95% | 64mm/s | 40% |
1.8mm Basswood | 16mm/s | 95% | 64mm/s | 40% |
Cylindrical engraving
|
||||
Glass bottles | - | - | 80mm/s | 20% |
Mineral water bottle | - | - | 16mm/s | 80% |
Acrylic | - | - | 40mm/s | 80% |
Paper towel tube | - | - | 24mm/s | 80% |
Easy Pull Can | - | - | 80mm/s | 30% |
Wood cylinder | - | - | 40mm/s | 80% |
Tsingtian Stone | - | - | 80mm/s | 20% |
Ceramic Mug | - | - | 80mm/s | 20% |
8. Meet, install, and use Rotary Attachment

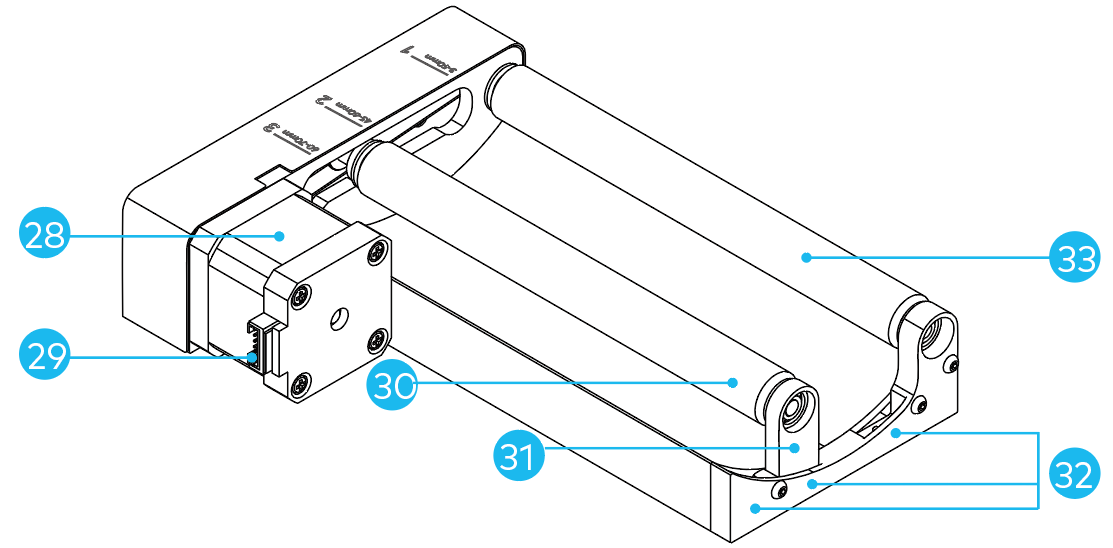

28: Motor 29: Device connection port 30: Adjustable roller 31: Roller stand 32: Slot × 3 33: Fixed roller |
For details about how to install and use Rotary Attachment, see How to Install the Rotary Attachment for Laserbox Rotary.
9. After-sales services
10. Statement
|
Warning
Physical injuries or damage to the machine may be caused if you do not follow the instructions or principles.
|
|
Warning
Physical injuries or damage to the machine may be caused by laser light if you do not follow the instructions or principles.
|
General safety
- Check the machine for damage every time before you use it. Do not operate it in any way when any damage or defect is found.
- Ensure that the workspace is clean and flat. The laser tube is made of glass and is very fragile. If it is broken, the machine fails to work.
- Do not disassemble the machine or change its structure in any way without authorization. Do not modify or decompile its operating system.
- Do not leave the machine unattended when it is working. Pay attention to whether it is working properly.
- Keep the inside of the Laserbox clean. Residues and chippings accumulated during cutting and engraving are dangerous and may cause fire. Clean the chippings and residues in the honeycomb panel and tray regularly.
- The machine works properly at the temperature of 5°C to 25°C. Do not operate it at a temperature lower than 0°C.
Laser safety
- Do not operate the machine when any part of it (such as the tray) is removed. Removing any part may expose the laser system and cause damage to the machine. Note that CO2 laser beams are invisible.
- Do not engrave or cut any material that contains PVC or vinyl (processed plastics are not recommended). These materials (and other materials containing chlorine/chloride) can generate corrosive vapor that is extremely harmful to the human body and may cause damage to the machine. Any damage caused by engraving or cutting any material containing PVC or vinyl is not covered by Makeblock’s warranty.
- Do not engrave or cut any unknown materials. Vaporization/melting of many materials, which include, but are not limited to PVC and polycarbonate, may release harmful smoke.
- Do not operate the laser when the lid is opened or the tray pulled out. Do not tamper with the safety mechanism of the lid.
- Ensure proper connection with the smoke purifier before operation. Most materials produce pungent smoke when being processed, which include but are not limited to, paint, varnish, composite boards, and plastics that may generate hazardous compounds during laser processing.
Fire safety
- Do not stack materials (especially organic ones, such as paper) around the machine. They may cause the spread of flames and increase the risk of material ignition.
- Do not leave the machine unattended when it is working. If the machine works with incorrect settings and is left unattended for a long period of time, or if a mechanical or electrical fault occurs, a fire may be caused.
- Clean the machine regularly. Excessive accumulation of residues and chippings from cutting and engraving may increase the risk of fire. Remove and clean the honeycomb panel and tray periodically to ensure that there is no residue or chipping inside the machine.
- Ensure that the area around the machine is clean without any cluttered flammable materials, explosives, or volatile solvents, such as acetone, alcohol, or gasoline. Keep a fire extinguisher and perform regular maintenance and inspection of it.
Electrical safety
- Do not disassemble the machine when it is connected to a power supply. Otherwise, an electric shock may be caused.
- Do not touch any electronic area with your hands or other tools when the machine is connected to a power supply.
- You can power on or off the machine with the power switch on the rear panel. Press (-) to power it on and press (o) to power it off.
