Use xTool P2 Honeycomb Panel

Note:

• Handle the honeycomb panel with care. Dropping or crashing the honeycomb panel may deform it and affect its function as a working panel.
• Residues may remain in the honeycomb panel after material processing. You are advised to take it out and clean it every time after a material is processed. To help you remove and clean the honeycomb panel easily, the area of the honeycomb panel is designed to be smaller than the working area. Hand clasping positions are provided on the two sides after you place it into xTool P2.

• As time goes, some parts of the honeycomb panel may sink. To prevent the problem where the top surface of a material placed on the honeycomb panel is lower than the slats plane in Slats flat processing mode, which causes the failue of auto-measure, the honeycomb panel is equipped with thick non-slip foot pads that raise it 1.5 mm higher than the slats plane after it is placed into xTool P2.

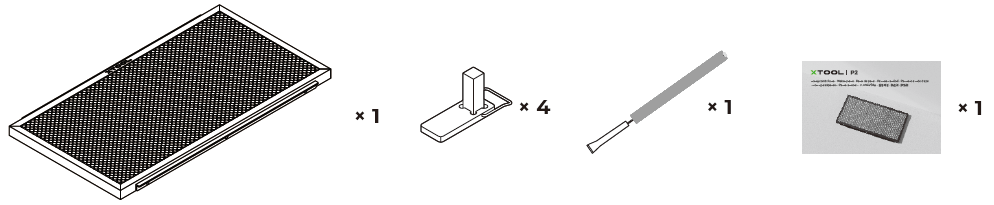

List of items

Use the honeycomb panel

Thickness of materials supported

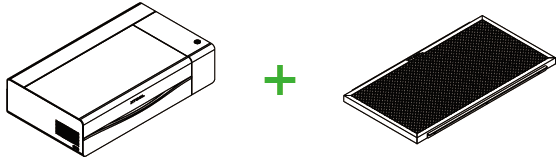

	If you use the honeycomb panel with only xTool P2, you can process a material with a thickness h, where 0 < h ≤ 22.

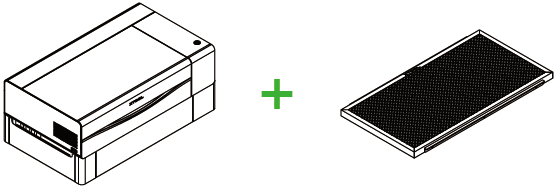

	If you use the honeycomb panel with xTool P2 and the rise base, you can process a material with a thickness h, where 22 < h ≤ 176.

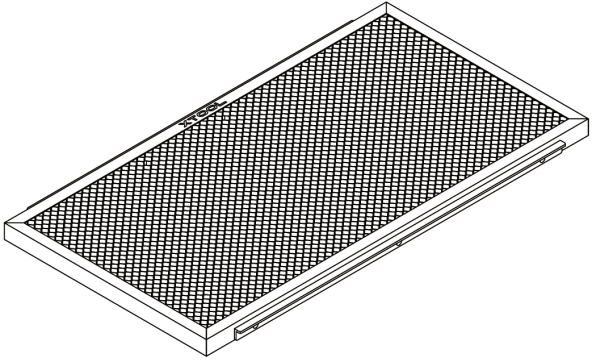

Place the honeycomb panel

When you use the honeycomb panel with only xTool P2

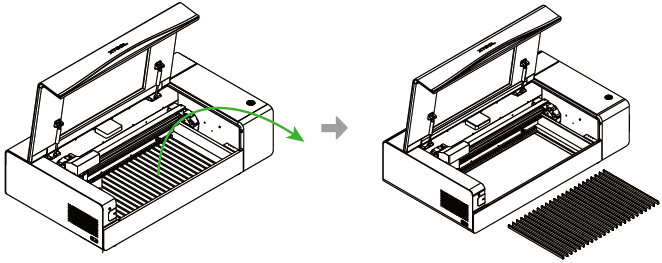

1. Remove all the slats from xTool P2.

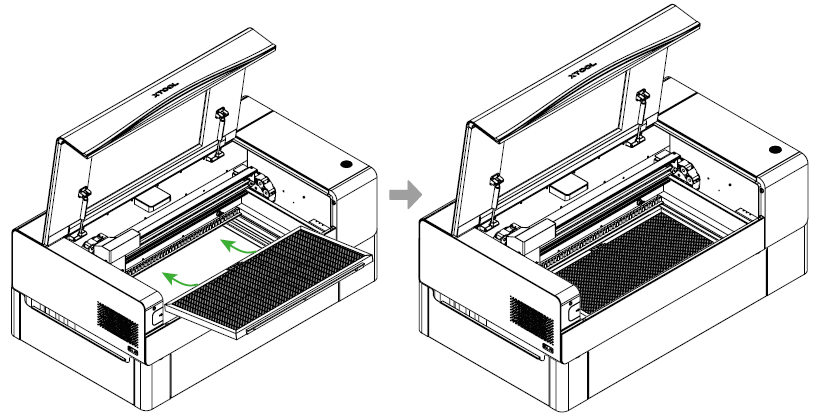

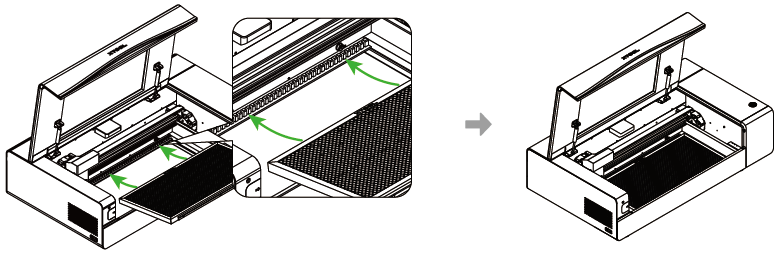

2. Place the honeycomb panel into the machine, resting the fixing plates on the front and rear sides of the honeycomb panel on the slat holders.

When you use the honeycomb panel with xTool P2 and the riser base

Determine the level to place the baseplate based on the thickness of the material and honeycomb panel, and then place the honeycomb panel on the baseplate.

Understand the processing modes for different types of materials

To process flat materials

• If you place the honeycomb panel inside xTool P2, select the Slats flat processing mode for processing flat materials. In this mode, the processing area of the honeycomb panel is 556 mm × 280 mm, which is smaller than the processing area (600 mm×305 mm) available when you use the slats.

After placing your material, click Aim-measure or Quick-measure to measure the thickness of the material.

Note: The honeycomb panel is equipped with non-slip floor pads. In the Slats flat processing mode, the thickness measured may be slightly different from the actual thickness of the material. You don't need to modify the thickness value on XCS. It doesn't affect the processing results.

• If you place the honeycomb panel inside the riser base, select the Open plane processing mode for processing flat materials. In this mode, the maximum processing area supported by XCS is 500 mm × 250 mm, which is smaller than the area (556 mm × 280 mm) of the honeycomb panel.

After placing your material, click Aim-measure to measure the distance.

To process cylindrical materials

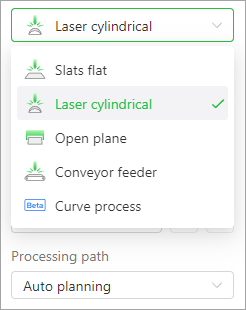

Select Laser cylindrical and ensure that the surface, of the material, to be processed is higher than the slats plane.

After placing your material, click Quick-measure to measure the distance.

To process materials with curved surfaces

Select Curve process and ensure that the surface, of the material, to be processed is higher than the slats plane.

After placing your material, click Quick-measure to measure the area to be processed.

Start processing

1. Connect xTool P2 to XCS.
2. Design or import images or other elements for processing.
3. Set the processing mode and complete auto-measure.

Note: Use the auto-measure instead of manual-measure to measure the thickness or distance of a material.

4. Set the object processing parameters. For details, see "Use xTool Creative Space (XCS) to Operate xTool P2."
5. Click Process to preview the object.
6. Click Start and press the button on xTool P2 to start the processing.
7. Wait for the processing to complete.

Maintenance

Residues may remain in the honeycomb panel after material processing. You are advised to take it out and clean it every time after a material is processed, so that the next processing won't be affected.

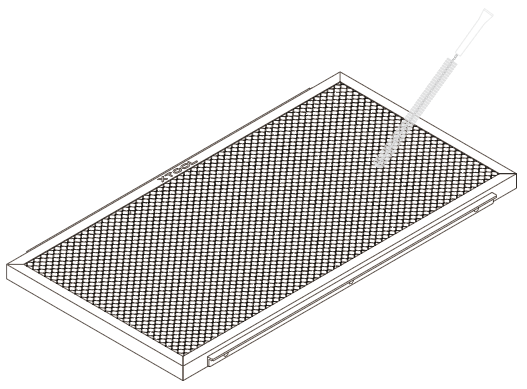

 You can use the brush delivered with the honeycomb panel to clean the cells of the honeycomb panel.
