Replace the Laser Module Cover for F1

Article author
Ela
  • Updated

Introduction

This guide shows you how to remove the metal cover of F1's laser module.

By doing so, you can replace the cover or get inside the module for troubleshooting.



Things Needed

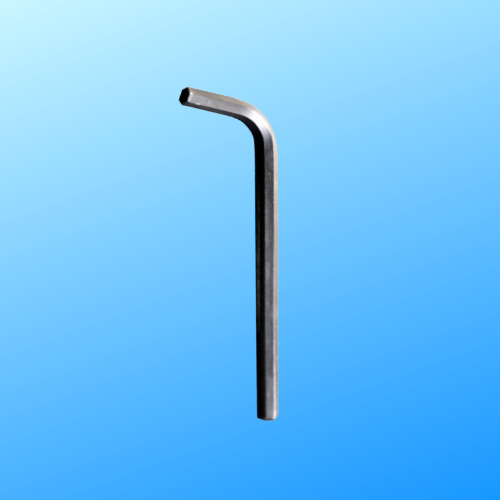

  • A hex key or hex screwdriver (3/32″ or 2.5mm)

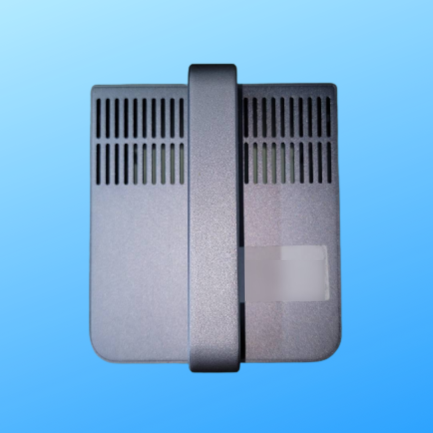

  • A replacement metal cover of the laser module (if needed).
工具-六角扳手.PNG F1-零部件-激光头金属外壳.PNG



Operation Steps

#1 Prep the Machine

  1. Start the machine, wait until it's fully powered on and the knob responding.

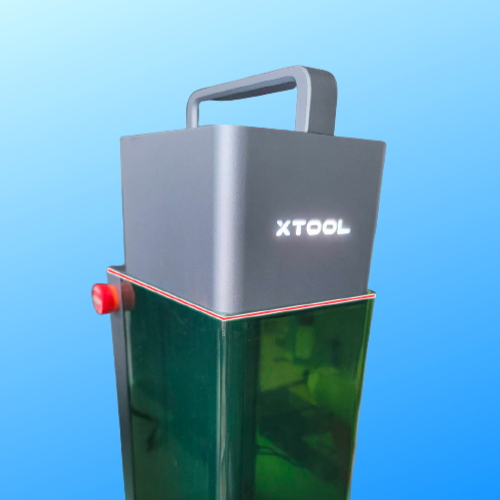

  2. Turn the knob to raise the laser module until it moves to the maximum height.
  3. Power off the machine, unplug the power cable, and take off the baseplate.
  4. Lie down the machine with its front side facing up and put on the lens protector.
F1-操作步骤-激光头最高点.PNG F1-操作步骤-场镜保护盖.PNG

Now the machine is in the right status and position for further operation.

#2 Remove the Cover

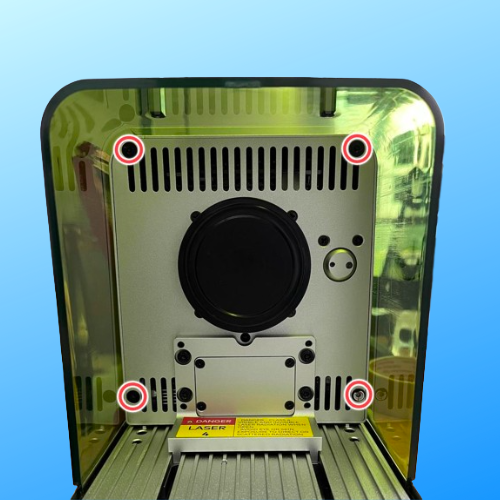

  1. Remove the four screws at the bottom of the laser module with the hex key.

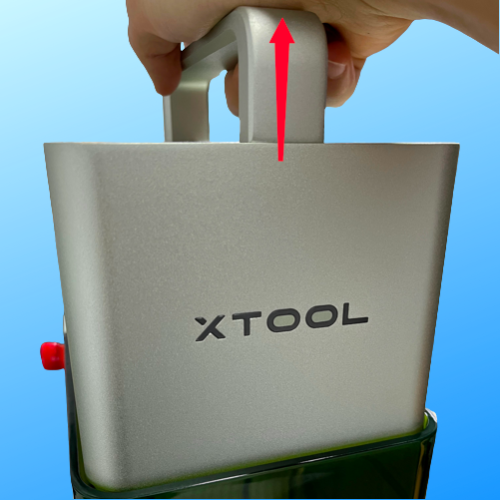

  2. Raise the machine, lower the shield, grasp the handle and pull the metal cover up.

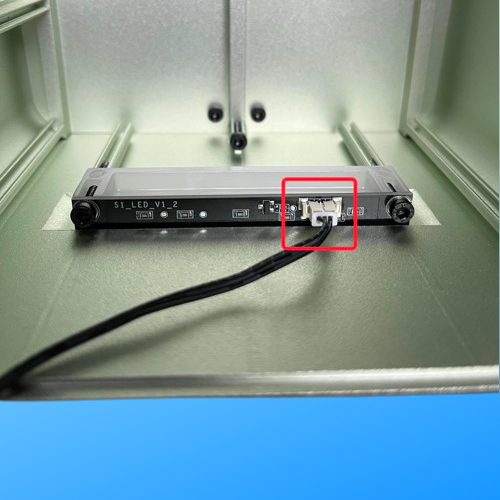

  3. Reverse the metal cover and find the logo indicator board. Unplug the cable.
F1-操作步骤-激光头底部螺丝.PNG F1-操作步骤-将激光头外壳提出.PNG F1-操作步骤-logo指示灯接头.PNG

Now the metal cover is completely severed from the machine.

#3 Replace and Reinstall

  1. Get the replacement cover, connect the cable, and put it back on the module.
  2. Lie down the machine and put the four screws back on with the hex key.

Now the whole replacement process is finished.
