    Issue Description

    When you use F1, the blue and red laser should fall on the same spot. The overlapping of the two lasers creates a purple-like dot. However, sometimes you may find them separated. This guide will tell you how to align these dots.


    Solution

    1. Connect F1 to a computer and launch XCS.

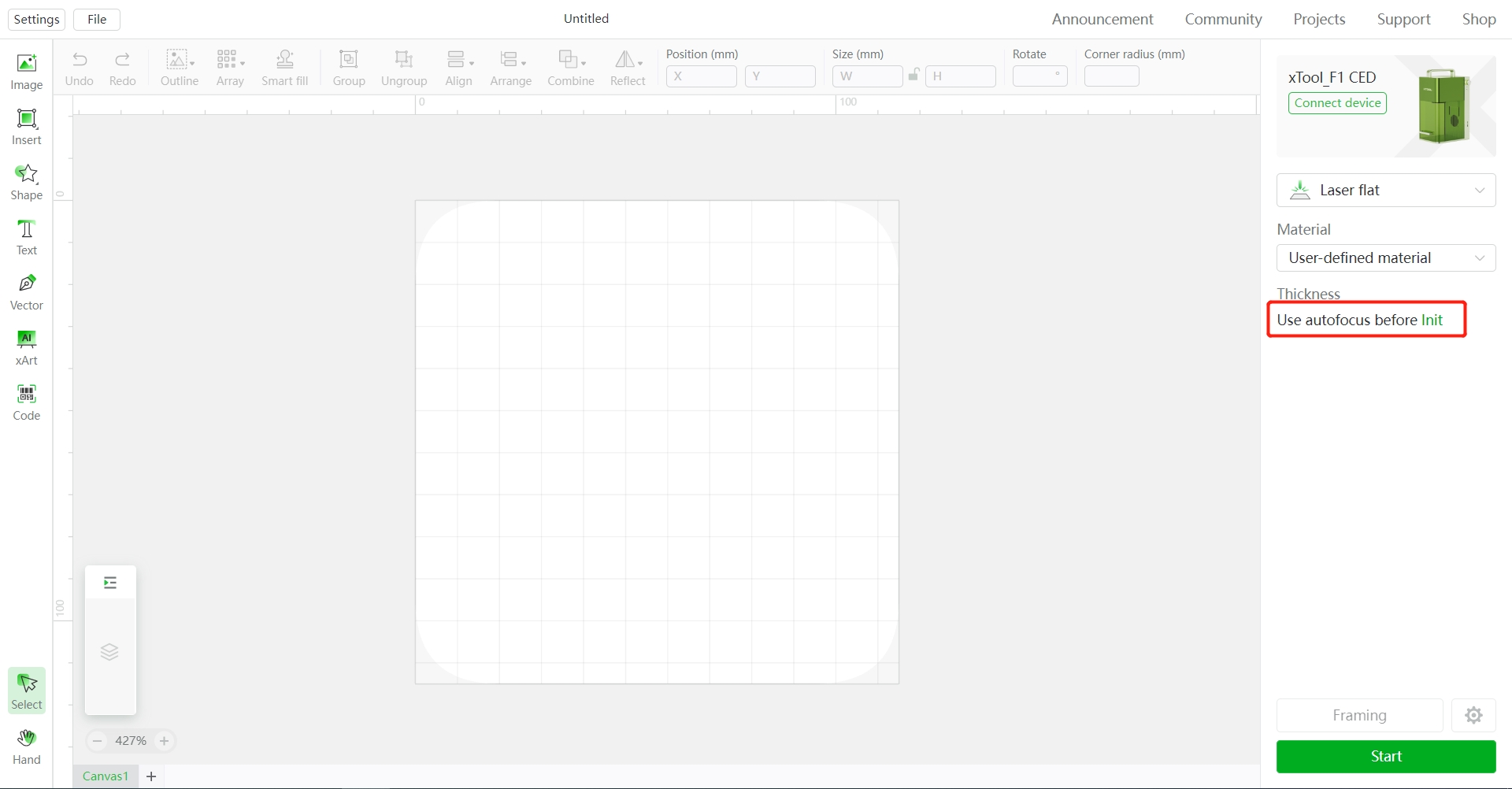

    2. On the right panel, find "Use autofocus before init".
    3. Click on the word "Init" in green. Wait for the device to complete the initialization.
    1. Next to the laser outlet, you'll see a ball head and two screws near it.
    2. Loosen the screws a bit to make the ball head movable.
    3. Get a screwdriver and stick it into the bigger hole on the head.
    4. Adjust the ball head until the two laser dots overlap.
