XCS Can’t Find the Scale of the Honeycomb Panel

Issue Description

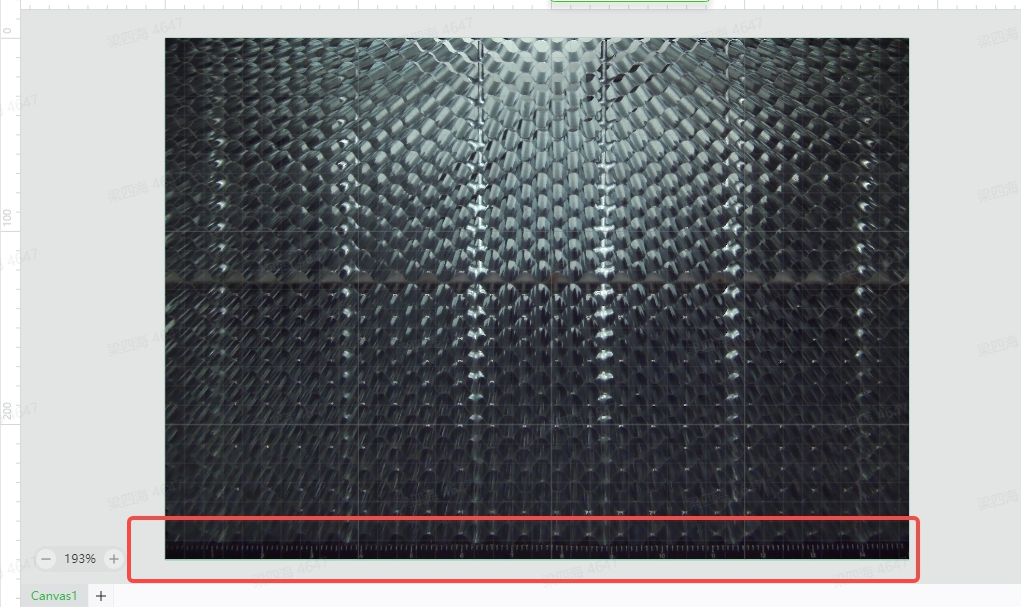

Put the honeycomb panel on top of the riser base, you can't find or only find part of the honeycomb panel scale in XCS, as shown in the figure below.



Cause

The shooting image in XCS changes with processing mode and material height, so the honeycomb panel scale may not be fully displayed at some heights.



Solution

Adjust the actual height of the material.

Note: the higher the material, the larger the wide angle of the image.
