Troubleshoot Laserbox Error Code Qx01 2

Article author
xTool Customer Service
  • Updated

Issue Description

Error Code 'Qx01 2': Water Tank Temperature Sensor Exception

The Qx01 2 indicates the temperature sensor of the water tank is abnormal.
If you see a pop-up notification with this error code, please refer to the steps below to troubleshoot the issue.

#1 Check the Temperature Sensor Wiring

Turn off the machine. Refer to this video to remove the upper left cover.

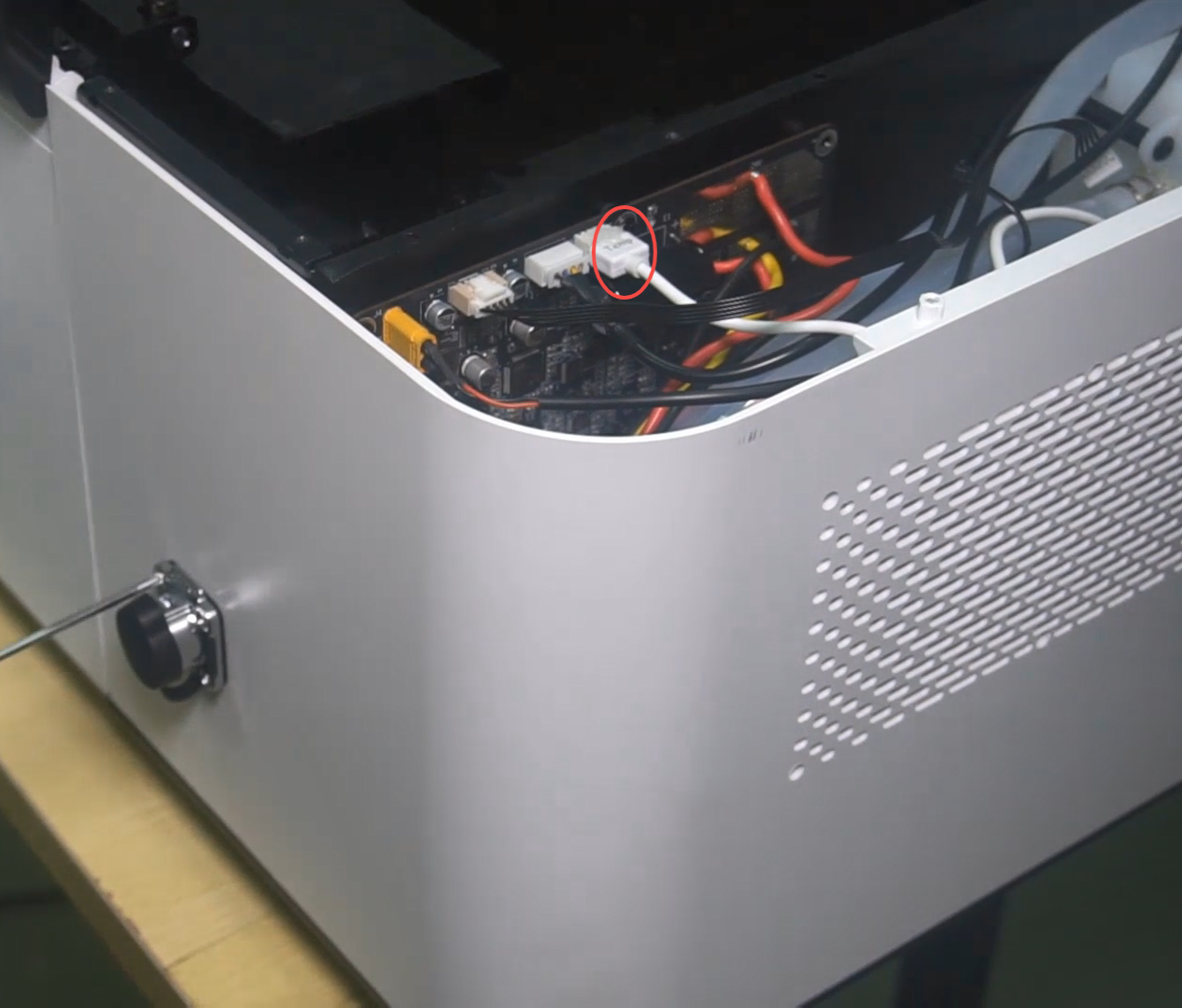

Unplug and replug the temperature sensor wire (circled in the picture below).
Put the cover back and see if the issue is resolved.
If not, please move on to the next step.
If you have followed all the instructions above and the issue is still unresolved, please read the article, collect the troubleshooting steps you have taken, and contact xTool tech support for further advice.
