User Manual for the Desktop Smoke Purifier

    Article author
    Permanently deleted user
    • Updated

    Content

    List of items

    Meet the desktop smoke purifier

    Install the desktop smoke purifier

    How to install the pipe adapter?

    Use the desktop smoke purifier

    Indicator status description

    Maintenance

    FAQs

    List of items


    Desktop smoke purifier


    Pipe adapter


    USB cable (Type-C)

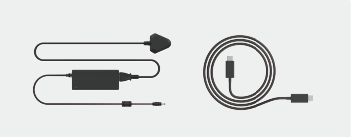

    Power adapter & power cable


    Filter pack


    Pre-filter


    Pipe


    User manual

    Meet the desktop smoke purifier



    Install the desktop smoke purifier

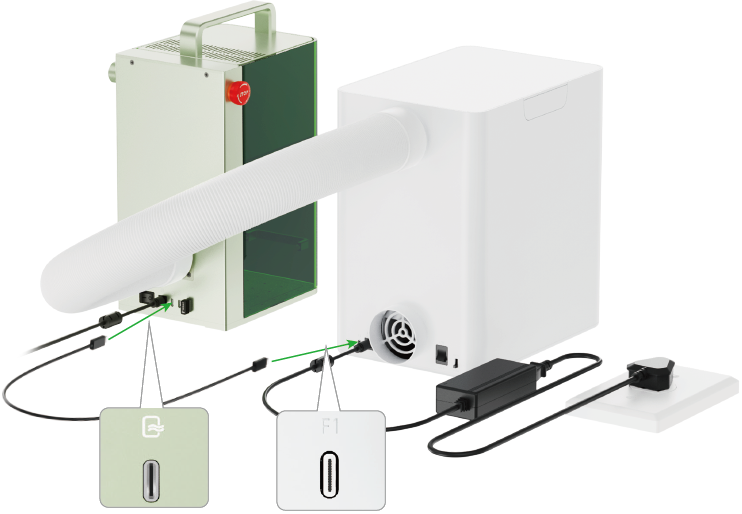

    1. Install the pipe attached to xTool F1 to the smoke inlet of the smoke purifier.

    💡 Tips: You can find the component in the pack of xTool F1.

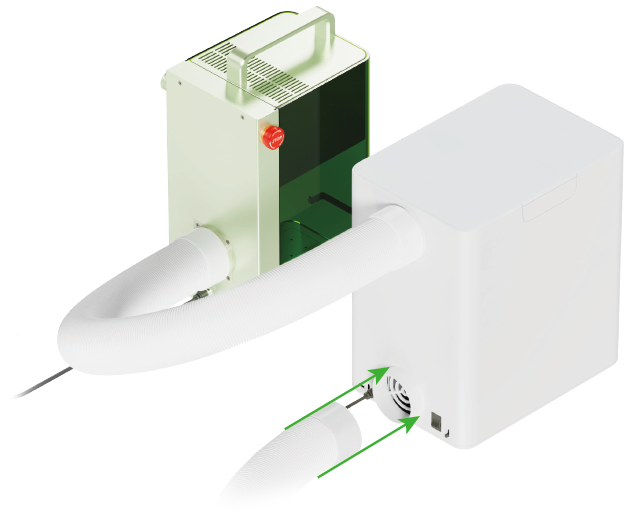

    2. Install the other end of the pipe to the smoke outlet of xTool F1.

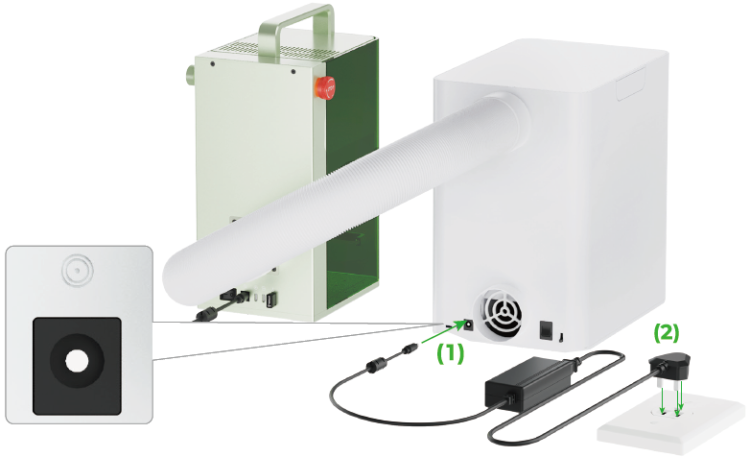

    3. Connect the power cable and power adapter to the power port and the socket.


    4. Connect one end of the USB cable (Type-C) to the xTool F1 port. And connect the other end to the smoke purifier port.

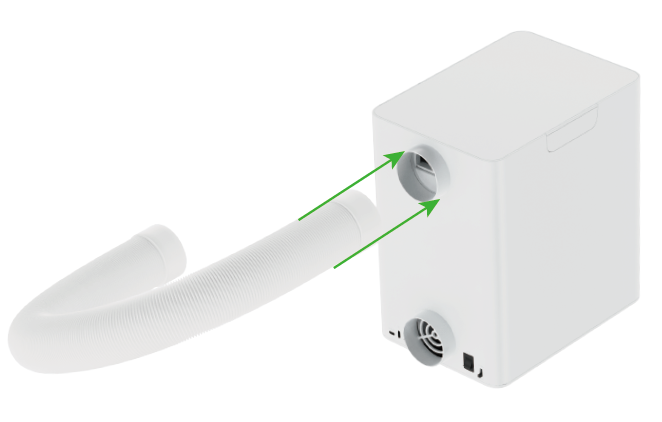

    5. Install the pipe to the smoke outlet of the smoke purifier.

    💡 Tips: You can decide whether to install the pipe included in the pack of the desktop smoke purifier according to your need.



    How to install the pipe adapter?

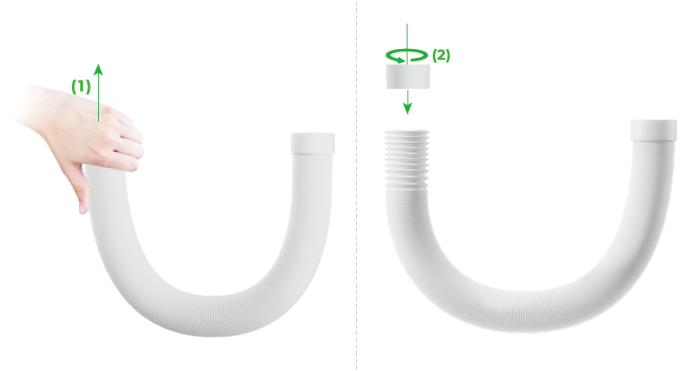

    To install the pipe adapter, stretch the end of the pipe first, and tighten the pipe adapter to the pipe clockwise.


    Use the desktop smoke purifier

    💡 Tips: There are 3 levels of power, including low, middle and high.

    If the laser module emits blue rays, it is recommended to select the high level. If the laser module emits infrared rays, it is recommended to select the middle or low level.

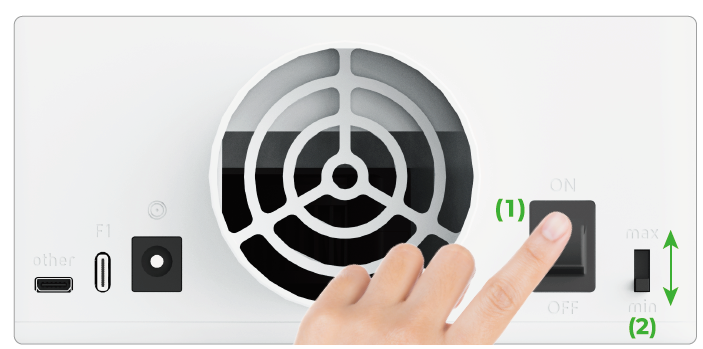

    Turn on the smoke purifier and select the power level by shifting the level adjustment switch.



    If you connect the desktop smoke purifier to xTool F1


    United mode: When xTool F1 is detected, the smoke purifier automatically switches to the United mode.

    The smoke purifier starts working when xTool F1 starts processing and continues working for a while long after xTool F1 stops processing, so as to purify the air.

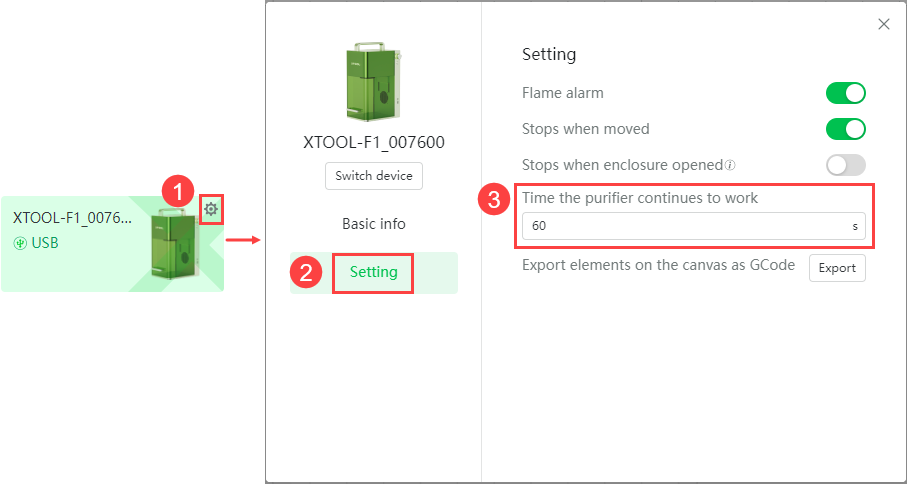

    The continued working time can be set on the XCS software.


    Press: The smoke purifier starts/stops working. When the smoke purifier accepts the united commands from xTool F1, it executes the commands from xTool F1 in priority.

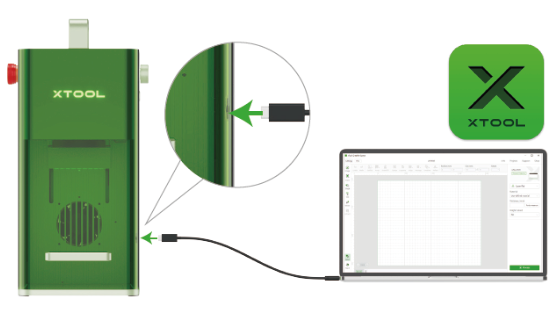

    💡 For details about how to connect XCS to xTool F1, visit support.xtool.com.




    If you disconnect the desktop smoke purifier from xTool F1

    💡 When the smoke purifier is under the Constant mode and xTool F1 is detected, it automatically switches to the United mode.


    Constant mode: You can only press the button to switch the working status of the smoke purifier when xTool F1 is not detected.

    Press: The smoke purifier starts/stops working.

    Indicator status description

    Indicator status

    Buzzer status

    Explanation


    Light on for 3 seconds, and light off


    Three times

    The device is powered on.


    The indicator of the united mode lights on.


    Once

    The device is working in united mode.


    The indicator of the constant mode lights on.


    Once

    The device is working in constant mode.


    Blink rapidly


    Twice, at an interval of three seconds

    The motor has been damaged. Please replace the filters in a timely manner or check whether something is blocking the smoke inlet.

    Maintenance

    Meet the filter pack


    Replace the filter pack

    1. Press two sides of the lid, open the lid and take out the pre-filter.


    2. Hold the strap of two sides up and take out the used filter pack.

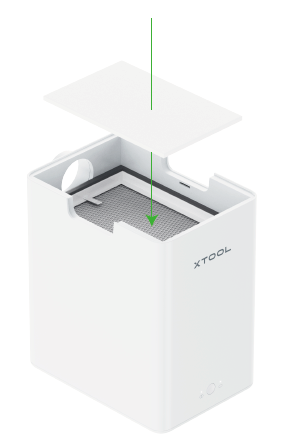

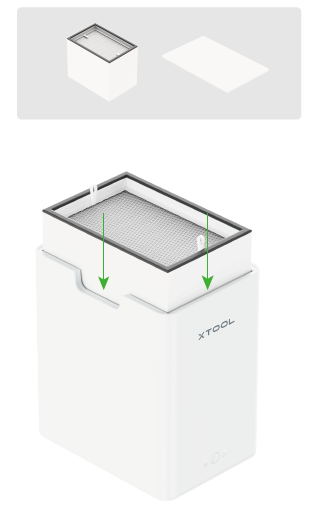

    3. Put the new filter pack and pre-filter into the smoke purifier.


    💡 You can visit www.xtool.com to purchase the filter pack.

    4. Close the lid.

    💡 Tips: Press the lid down and make sure the lid is installed properly.


    FAQs

    Problem: Under the United mode, the device is processing, but the purifier does not work. Why and what can I do?

    Possible causes: The inlet gets blocked. Or There is something in the pipes. Or One or more filters fail to work after long-term use, which is indicated when the buzzer of the purifier sounds.

    Solutions:

    - Replace the filter(s). Replaceable filters are used in the product. When the buzzer of the machine sounds, you need to clean or replace the filters for the purifier. You can visit xtool.com to buy the filters you need.

    - Power off the purifier, open the lid and check whether the inlet is blocked, and then check whether the outlet is choked.
