D1 Product Introduction

Overview



Introduction

The xTool D1 is a desktop-size machine for laser cutting and engraving ideal for small businesses, hobbyists, designers, artists, and other technology enthusiasts and people with an entrepreneurial spirit.



From assembly to operation, the steps that users need to follow have been simplified. The xTool D1 offers high-quality results with a sturdy design, helping creators to focus more on their ideas.



Small Businesses	Family	Designers & Artists	DIY hobbyists
Create and bulk-produce personalized items.	Create your own exclusive life with the family.	Realizing unlimited creativity.	Enjoy your hands-on time.



Not sure if this is what you want? Take a machine recommendation quiz here:

https://www.xtool.com/pages/xtool-machine-recommendation

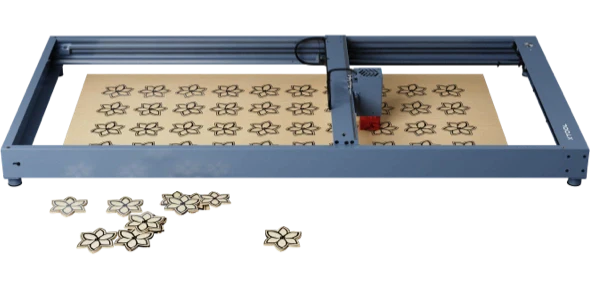

Meet the xTool D1





Features

• Sturdy and durable construction
• High accuracy and speed for cutting & engraving
• Versatile software capabilities
• Various laser materials are available
• Support for cylindrical engraving and bulk processing
• Multiple ways to connect and transfer designs
• Ample work area and integrated operational safety

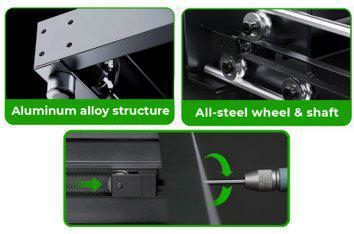

Sturdy and Durable

ALL-STEEL wheels, shaft, and structure support more than 100,000+ times sliding, and have a lifetime of 3 times longer than that of plastic.   A High-performance TMC2209 motion-sensing chip and 32-bit dual-core MCU integration are used to provide more reliable daily use.



Accurate and Fast

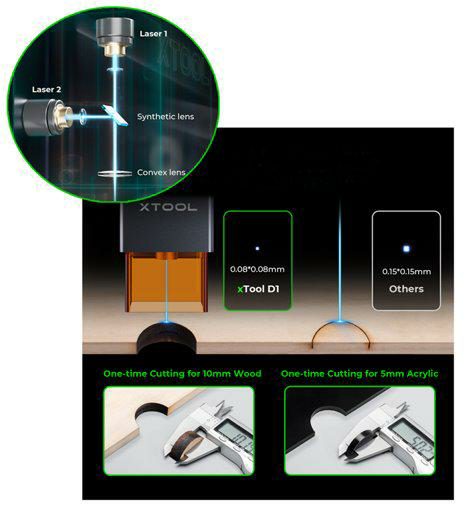

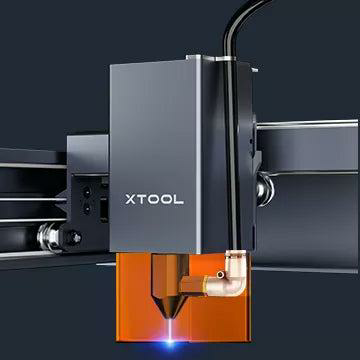

With the compressed spot technology, the laser spot is only 0.08 x 0.08mm, achieving clear and precise engraving and cutting results.   Up to 10,000mm/min, motion accuracy of 0.01mm, and repeat positioning accuracy of 0.02mm, realize your ideas more delicately and efficiently.   Industry-leading high-quality and innovative dual laser technology combines two laser beams into one through a reflector, providing higher power with a compressed spot.   More powerful, more accurate, faster, and better performance under the same power conditions.



Versatile Software

The dedicated software supports operation on laptops and computers working seamlessly on Windows and macOS devices.   Edit pictures, text, and QR code engraving to meet various customization needs. Offline processing mode, higher efficiency, and easier operation.   Compatible with LightBurn, a software designed to control a wide variety of laser cutters. The engraving file format supports NC, BMP, JPG, PNG, DXF, etc.



Various Materials

Stainless steel, acrylic, kraft paper, cardboard, wood board, leather, plastic, MDF, glass, marble, ceramic, jade, and more. Support many types of materials so that creativity is not limited.	xTool offers you several types of consumables, raw materials, and semi-finished or customized materials to expand the boundaries of your business.

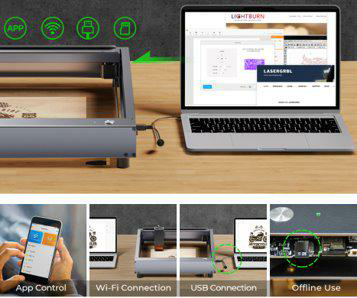

Multi-Connections You can transfer data via Wi-Fi, USB cable, a large capacity TF card (Offline Use), and use D1 anytime and anywhere.	Cylindrical Engraving With the rotary engraving accessory, users can switch from cylinder engraving in just a few simple steps.

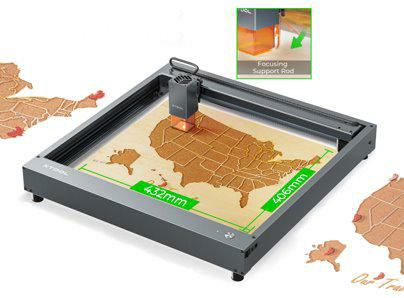

Ample Working Area The xTool D1 supports a working area of 432 x 406mm, allowing you to process large objects or engrave/cut in batches in one go. Efficient manual focus procedure, simple to operate.	Larger Objects Additional risers to increase the height of xTool D1 to facilitate the engraving of higher objects.

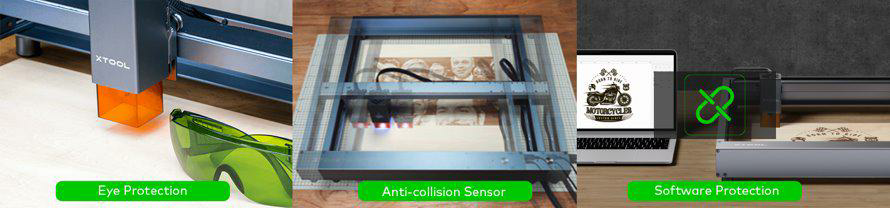

Integrated Safety The laser head comes with a laser cover for eye protection. Stop working automatically when the machine moves during processing. Stop work when communication is interrupted.

Specification

Laser System	Laser Module	D1 - 5W	D1 - 10W	D1 - 20W	D1 - 2W (1064nm IR)
	Machine Power	36W	60W	120W	120W
	Laser Power	5W	10W	20W	2W
	Laser Spot	0.08 * 0.08 mm		0.08 * 0.15 mm	0.03 * 0.03 mm
	Wavelength	455 ± 5 nm			1064 nm
	Processing Speed	160mm/s
Motherboard	Voltage Input	100~240V, 50~60Hz
Software	Computer OS	Windows/macOS
	Control Software	XCS/Lightburn
	Image Format	SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc.
Working Dimension	Working Area	430 * 400 mm		430 * 390 mm
	Max. Workpiece Height	50mm (190mm with 2 risers)
Connection	Standard	USB/Wi-Fi
Weight	Product Weight	5kg
	Package Weight	6kg
Size	Product Size (L * W * H)	600*590*150 mm (23.6*23.2*5.9 inch)
	Package Size (L * W * H)	620*345*130 mm (24.4*13.6*5 inch)





Comparison

Want to find out the differences between D1 and other machines?

Check out the Machine Comparison page below for all the details you need~

https://www.xtool.com/pages/tech-specs



Accessory

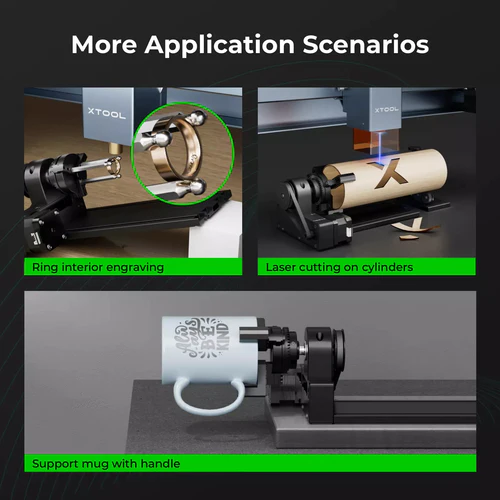

Rotary Attachment

The rotary attachment is available in up to 4 rotary modes for different objects. Roller rotary, chuck rotary, sphere-engraving module, and ring-engraving stud, covering 90% of daily use scenarios.



RA Series	RA1	RA2	RA2 Pro
Rotary Modules	Roller		Chuck	Sphere	Ring
Workpiece Diameter	3~198mm		0~100mm	25~100mm	11~70mm
Workpiece Example	Baseball Bat, Ceramic Vase, Tumbler, etc.		Irregular Cylinder, Mug, Wine Glass, etc.	Christmas Ball, Baseball, Golf Ball, etc.	Ring or Similar Objects



Learn more on the product page: xTool RA2 Pro for D1 Pro/D1 + Risers (8 Packs)

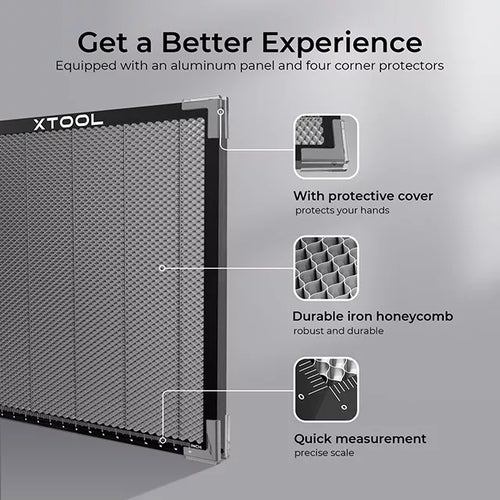

Honeycomb Panel

The honeycomb panel set can be used to put the material to be processed, with its honeycomb holes to speed up air circulation, and the honeycomb panel with dimensions for user-friendly positioning and dimensional evaluation of processed objectives. We also provide an aluminum plate to protect your table.

Learn more on the product page: xTool Honeycomb Working Panel Set for D1 Pro/D1



Air Assist Set

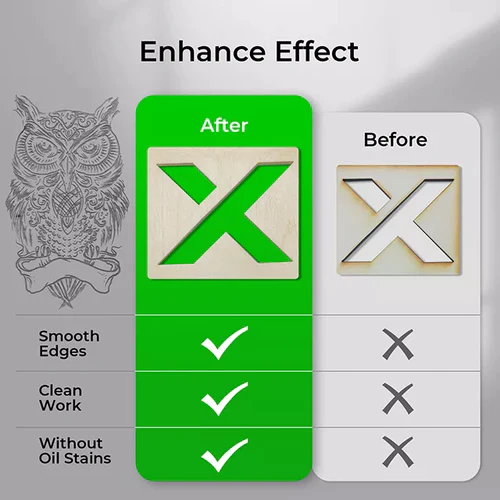

The air assist set provides a steady stream of high-pressure air to blow away fumes, increasing the efficiency of laser processing, saving processing time, and achieving better results.

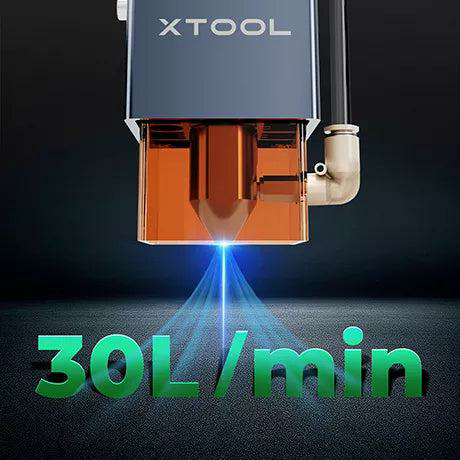

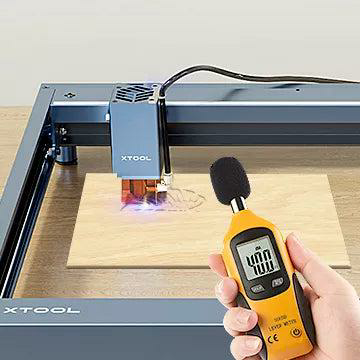

Protect the laser lens The xTool air assist device blows away acceptable debris and smoke generated by the laser head operation, protecting the laser head lens from contamination and extending the life of the laser head.	Guaranteed clean surface It uses air to quickly reduce the temperature of the cut material surface, preventing distortion and discoloration due to high temperatures, ensuring smooth lines, complete patterns, and clean material surfaces.	Steady output power Large and stable wind, with a steady output power of 30L/min, effectively removes smoke and ensures laser energy stability.	Low working noise The noise of the air-assist unit during working is 40 decibels, which is lower than the sound of a fan. It can provide you with a quiet laser engraving environment.

Learn more on the product page: xTool D1 Pro/D1 Air Assist Set

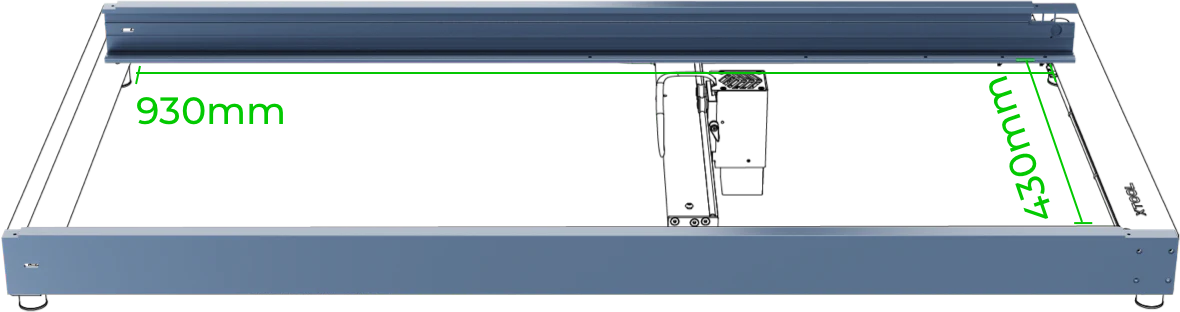

Extension Kit

With the xTool extension accessory, the working area can be extended to 432*936mm and larger and longer engraving and cutting projects are available.

Expand Your Working Area It not only meets the needs of engraving and cutting one large material but also multiplies the number of small materials you can put in the working area.	Higher Working Efficiency The large working area allows you to set more quantity at one time to achieve higher working efficiency.
Designed for Large-sized Creations

Learn more on the product page: xTool D1 Pro/D1 Extension Kit

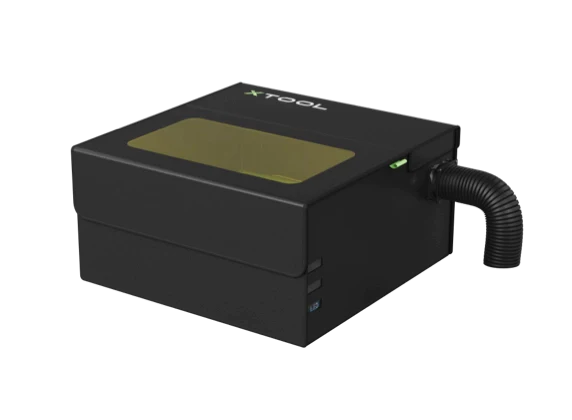

Enclosure

• Laser cutters produce smoke during operation, so it is necessary to control the smoke and ensure the ventilation of the surroundings to have a safe and pleasant working environment.
• Laser cutting also produces an intense light which can be harmful to the eyes if it's directly stared at.
• Affordable models of laser cutters often don't include an enclosure, to save costs and to make the machines more portable, easy to maintain, and easy to build.
• For this type of machine, a protective cover should follow the same principles: affordable, easy to build, easy to maintain, portable, and safe.

Enclosure Series	Enclosure 625 * 610 * 310mm (24.6 * 24 * 12.2 inches)	Enclosure Max 1180 * 610 * 310mm (46.45 * 24 * 12.2 inches)
Product Weight	3.4kg	6.3kg
Package Weight	4.21kg	7.15kg
Package Size	783*444*112mm	764*444*156mm



Learn more on the product page: xTool D1 Pro/D1 Extension Kit





Software

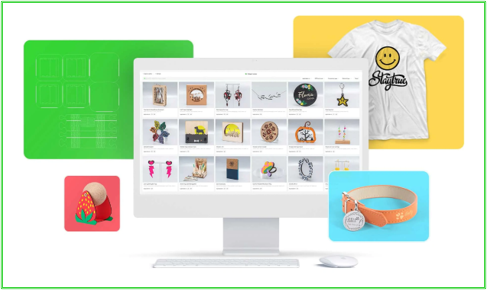

With the smart image processing function and motion algorithm that works great with xTool laser engravers, XCS allows you to create your works in the most effective way. Learn more on the product page: xTool Creative Space

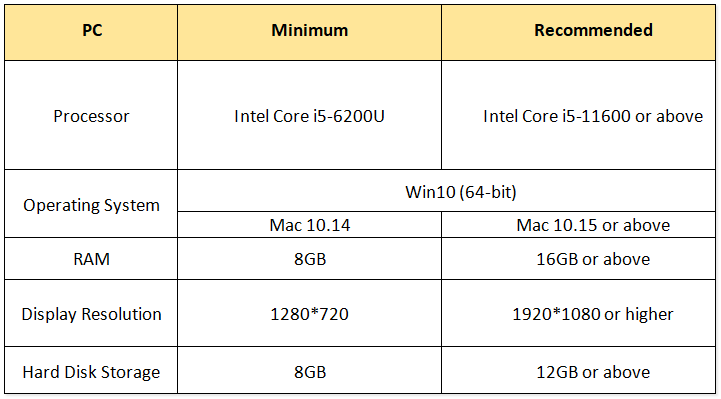

• With the minimum configurations, all the functions of XCS can be used properly. When you import a complex image, such as an image larger than 50,000,000 pixels or an SVG image larger than 1 MB, however, XCS may fail to run smoothly.
• With the recommended configurations, XCS can run more smoothly when you import and edit a complex image, the software delay may be shorter, and the performance is better.



Materials

• Engravable: Kraft paper, corrugated paper, cardboard, wood, bamboo, felt, leather, fabric, dark acrylic, MDF, dark glass, ceramic, jade, marble, shale, cement, brick, stainless steel, plated metal, painted metal.
• Cuttable: Paper, wood board, felt, and dark acrylic.



xTool Care

• Please refer to the service page: xTool Care for D1

Contact Us

• Email us via [e-mail]
