Understand the Components of xTool F1

Article author
xTool Customer Service
  • Updated

Unbox and check

Unbox xTool F1 and check the items inside the pack. If you find items missing or broken, please contact us for after-sales support.



Item

Name


xTool F1

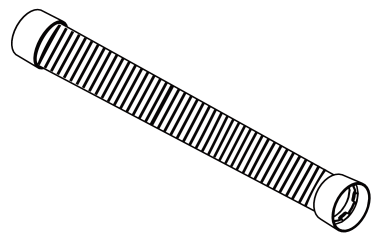

Pipe


Power adapter

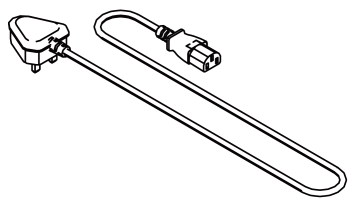

Power cable

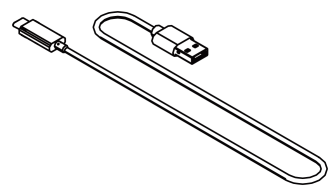

USB cable


Triangular prism working panel

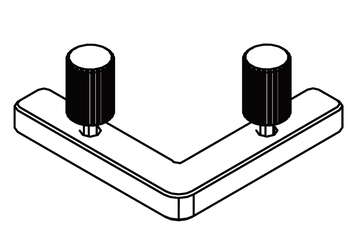

L-shaped positioning piece

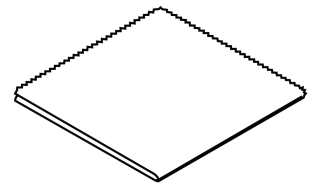

Lint-free cloth




Key (spare part)




Grease

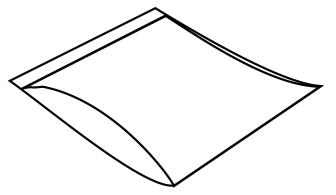

Material pack

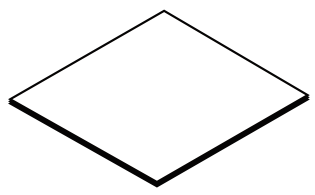

User manual



Meet your xTool F1

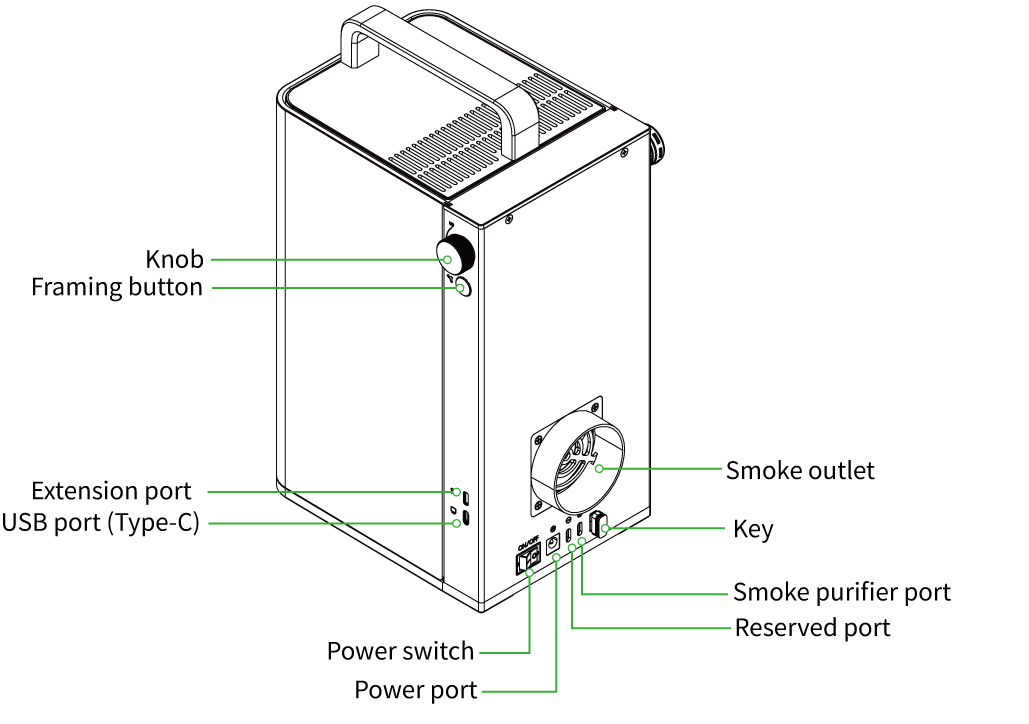

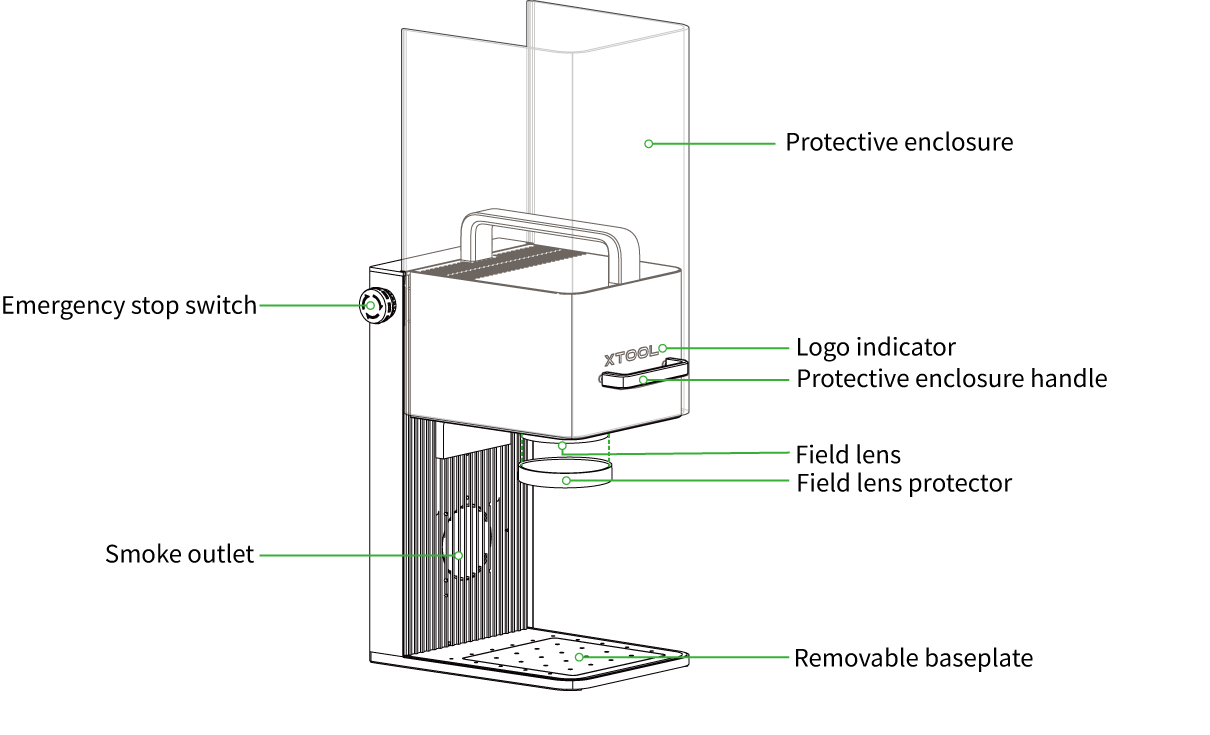

Product structure

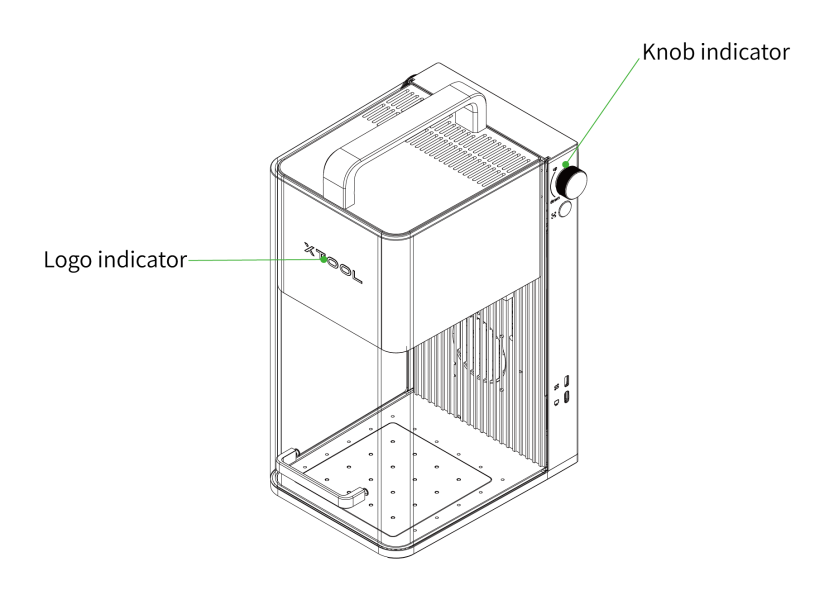

Indicator description


Logo indicator

Knob indicator

Machine state

Solid on

Solid white

Not connected to the software

Solid yellow

Network setting

Solid blue

Connected to the software

Solid green

Task completed

Solid purple

Firmware updating

Solid red

Exceptions occur

Blinking red for 3 times

Invalid operation

Blinking

Solid blue

Performing a task

Going off

Blinking white slowly

Sleep state entered when no operation is performed within 10 minutes
